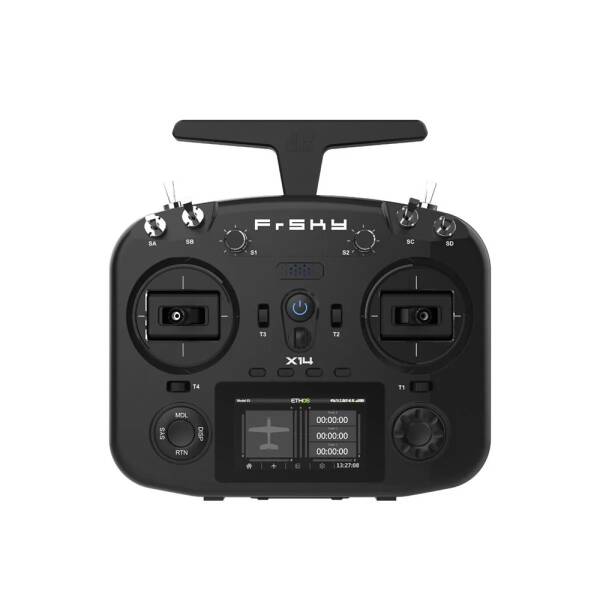

Dual 2.4GHz remote control system Twin X14 with 24 channels
The TWIN X14 is a robust radio system characterised by its ability to use two 2.4G frequencies simultaneously on the same receiver in TW mode. Unlike standard active-standby redundancy solutions, the TW active-active protocol ensures that both 2.4G frequency bands are actively used simultaneously on the RF module and the TWIN series receiver.
Equipped with two internal 2.4G RF antennas, the TWIN X14 offers comprehensive multidirectional coverage for the transmission of signals. The twin system utilises these features together with the external antennas to ensure lower latency, higher reliability and faster data rates. In addition to TW mode, the TWIN X14 also supports ACCST D16 and ACCESS modes, meaning the user can choose from a variety of compatible receiver options.
ERGONOMIC, COMPACT AND FLEXIBLE DESIGN
Based on the form factor concept of the TANDEM X18, the TWIN X14 was developed with the aim of improving portability, reducing weight and optimising its design. The ergonomic layout ensures that the buttons, sliders and switches on the top are easily accessible. The TWIN X14 has 4 customisable buttons carefully placed in the centre of the radio to enable real-time and frequent operations. For example, if you are flying an RC glider, you can configure these buttons as additional trim functions of ETHOS. These buttons are then invaluable for on-the-fly adjustments, allowing the pilot to adjust the angle of the flaps/surfaces according to the real-time air environment.
BUILT-IN FLASH MEMORY AND CHARGING SYSTEM | STAND MOUNT WITH ATTACHABLE STRUCTURE
The TWIN X14 has an inbuilt 128MB flash memory that provides ample space for your files. A 2600 mAh Li battery fits into the battery slot, which is easily replaceable and can be charged via a USB-C port.
To further enhance the user-friendly design, the TWIN X14 has an attachable and foldable structure on the back. This means that the X14 can not only be carried comfortably, but can also be positioned anywhere without having to hold the radio in your hands. (Accessories)
The 24 possible channels can be split between 3 receivers, allowing short cable runs in the model to be ralised or even the control of a daughter boat or similar.
No receiver or battery is supplied, the colour of the control unit is black or white depending on stock - please state your preference when ordering.
-Ergonomic and compact, lightweight design with comfortable, rounded handles
-easy-to-reach switches and sliders at the top
-2.95" TFT colour display with 640×360 resolution
-4 trims & 4 customised quick mode buttons (front) & 2 momentary buttons (rear)
-integrated flash memory, but with TF card slot for memory expansion
-High-precision Hall sensor gimbals with metal plate
-External Lite type module slot
-Haptic vibration alerts and voice output
-Supports charging system for 2S Li battery (USB Type-C interface)
-Wireless high-speed training system PARA
-ETHOS operating system
-CNC aluminium rear wall stand mount (optional)
-Internal RF module with two 2.4G bands TW-ISRM
-Supports multiple RF protocols: ACCST D16 / ACCESS / TW modes
-TW mode
-Extremely robust RF module that processes two 2.4G signals simultaneously
-Long range control (tens of kilometres, range varies depending on RF power setting).
-Low latency (＜4ms) with full telemetry support
-Lower latency with longer range and higher reliability with faster data rate
Technical data:
-Dimensions: 192×193×72mm (L×W×H)
-Weight: 610g (without battery)
-Operating system: ETHOS
-Internal RF module: TW-ISRM
-2.95" TFT colour display Resolution: 640×360
-Number of channels: Up to 24 channels
-Operating voltage range: 6.5V ~ 8.4V (2S Li-battery)
-Operating current: 330mA@7.4V (typ.)
-Operating temperature: -10℃ ~ 60℃ (14℉~140℉)
-Built-in 128MB flash memory
-Size of the battery compartment: 69.5×38.5×20mm (L×W×H)
-Data transfer and charging interface: USB Type-C USB adapter Voltage and current: 5V+0.2V, ≥2.0A
-Compatibility: ACCST D16 / ACCESS / TW modes
