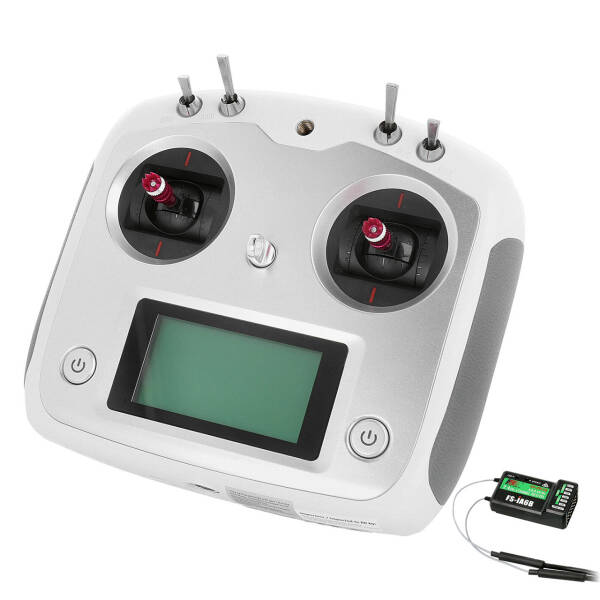

FS-i6S 2.4 GHz 10-channel radio control
The FS-i6S is a modern, compact 2.4 GHz radio control unit designed for a wide range of RC applications – from quadcopters and robotics projects to functional and construction machinery models. With up to 10 channels, a capacitive touchscreen and support for PWM, PPM, i-BUS and S.BUS, it offers a flexible control centre for pilots, model builders and hobbyists who need more than just standard functions.

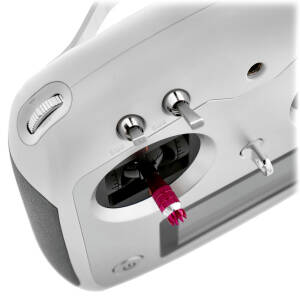

The modern operating concept is particularly user-friendly: the touchscreen makes programming, model setup and quick adjustments directly on site easier. In practice, the touch operation is often described as intuitive and clear. The protected antennas, integrated into the housing, make the remote control easy to transport and robust for everyday use. Programmable switches, pushbuttons and side-mounted rotary encoders are ideal for flight modes, additional functions, camera control or proportional special functions.
The FS-i6S provides a solid foundation for multicopters and FPV models. Via serial outputs such as i-BUS or S.BUS, the receiver can be neatly connected to modern flight controllers. Additional channels can be used for arm switches, flight modes, beepers, lighting, camera gimbals or other special functions. This makes the system suitable both for beginners with growing demands and for experienced users looking for a compact and flexible system.
The FS-i6S also demonstrates its strengths in functional model building. For excavators, wheel loaders, crawlers, trucks or special-purpose vehicles, the additional channels can be used for lighting, sound, hydraulic functions, winches, tipping bodies or tool movements. The side rotary encoders enable finely adjustable proportional controls, for example for booms, grapples, camera tilt or crane functions.
Another interesting application is RC sailing. Thanks to its precise control and additional channels, the system is also suitable for sail winches, rudder functions and customised special functions. The audible feedback during input aids safe operation, particularly when the pilot needs to keep their eyes on the model.
Technically, the FS-i6S impresses with high channel resolution, 2.4 GHz transmission, telemetry support, low-voltage alarm, operation on 4 AA batteries, update capability and a pleasantly compact housing. It is also of interest for simulator training, as it can be used via USB with suitable software.
Conclusion:
The FS-i6S is a cost-effective, versatile and modern 10-channel remote control for drones, robotics, simulator training and detailed functional models. It impresses with touchscreen operation, flexible connectivity options, a compact design and a wide range of applications. For users looking for a versatile RC system with modern features, it is an attractive choice.
Contents
FlySky i6S transmitter
1x receiver: FS-IA6B with 6 channels
Quick start guide, English
Technical specifications
Transmitter
Channels: 10, standard: 6
Range: 500–1500 m, line of sight
Channel resolution: 4096

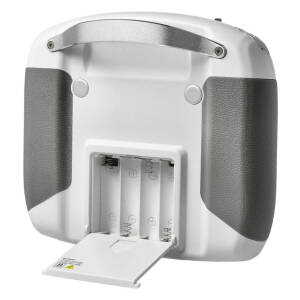

Battery: 4x 1.5 V AA
Low voltage warning: < 4.2 V
Antenna type: Dual

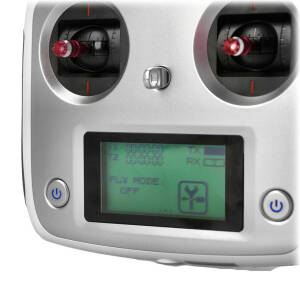

Display: Touchscreen
Simulator: USB
Online update: Yes
Dimensions: 179 x 81 x 161 mm
Weight: 410 g
Receiver FS-IA6B
PWM: 6
Frequency protocol: AFHDS 2A
Antenna type: Dual, 2x 150 mm
Voltage: 4–8.4 V
Data interface: PWM / PPM / i-BUS / S.BUS
RSSI: Yes
Dimensions: 47 x 26.2 x 15 mm
Weight: 10 g
