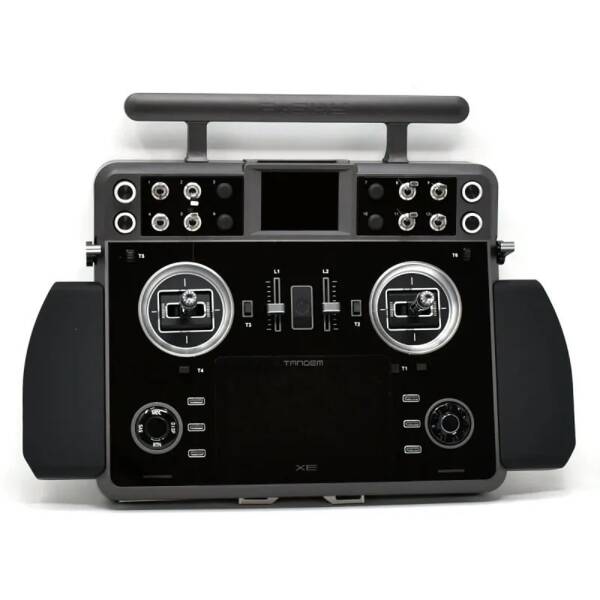

FrSky Tandem XE Set glossy black finish
24 channels on two frequencies and an incredible number of switches/controllers/buttons.
If you are investing in a new RC remote control system then you should opt for a system with sufficient functions and the latest technology. The 868Mhz band even works at an acceptable range under water and thus solves the 2.4Ghz range problems that often occur with model boats. If you are planning to equip a model with a sound module and countless additional functions, this control unit in combination with the USM3 sound/switching module is an unbeatable combination. You save on additional switching modules and decoders!
The 24 possible channels can be divided between 3 receivers, allowing you to realise short cable runs in the model or even control from a daughter boat or similar.
Based on the transmitters of the TANDEM series, which work with 2.4G and 868Mhz dual-band technology, FrSky has released the long-awaited TANDEM XE transmitter. The XE is the largest transmitter in the TANDEM series, designed specifically to meet the needs of RC users who enjoy the console transmitter design combined with the flexibility and number of switch inputs.
DUAL-SCREEN COLOUR DISPLAY DESIGN
The TANDEM XE is equipped with two screens. The main screen is a 4.3-inch colour touchscreen, which is used for operating ETHOS, e.g. model configuration. A second, smaller 2.4-inch colour screen is located on the top of the radio to meet the needs of RC users who wish to have additional information displayed separately. The content displayed on the additional screen can be programmed in the system (e.g. through Lua, configurable and personalised by the user).
MODULAR STRUCTURE AND FLEXIBILITY
TANDEM XE was developed with flexibility in mind. Not only does it have multiple switch input slots to expand the needs of the controller, but it also has customisable switch sets that can also be replaced by alternative sets with more input slots. For example, the forward and reverse movement of models with 2 drives can be realised by adapting the side CNC metal levers with the optional self-centring accessory. The use of the optional 3-axis sticks mounted on the gimbals also offers many possibilities for use with RC boats. The TANDEM XE has a retractable transmitter mount that can be easily folded into the bottom of the transmitter, and its design also provides a good solution for attaching the transmitter harness.
BUILT-IN MASS MEMORY AND BATTERY EXTENSION
To save the user from having to decide on memory capacity, the TANDEM XE has an in-built 8GB flash memory, which provides enough storage space for all your transmitter needs while allowing high data transfer speeds. And for those users looking for a larger battery capacity than the included 4000mAh Li-Po battery, the TANDEM XE offers a larger battery bay that can accommodate larger battery packs if needed.
Features:
-Carbon fibre centre section + CNC metal section
-Modular design | Interchangeable blocks with customised multiple inputs
-MC11 gimbals with Hall sensor and 10 ball bearings, adjustable 45° / 60° stick travel (additional travel limiting tool required), 8° rotating console
-6 trims + 4 retractable rotary potentiometers + 2 all-metal side levers + 2 linear sliders
-Colour touchscreen display for operating ETHOS
Colour screen at the top with user-configurable data display (e.g. via Lua)
-6 individually assignable quick mode buttons
-Lite-type external module slot
-Folding transmitter mount
-Built-in internal tandem 868Mhz/2.4Ghz dual-band HF module
-Built-in 8GB flash memory
-SD card slot for memory expansion
-Haptic vibration alerts and voice output
-Integrated charging electronics for 2S Li-ion/LiPo battery (USB Type-C interface)
-Wireless high-speed PARA training system (compatible with FreeLink App 3.0)
-Large battery slot for upgrading the battery capacity with a larger battery
Technical data:
-Dimensions: 345x262x82mm(LxWxH)
-Weight: 1357g(without battery)/ 1492g(with battery)
-Operating system: ETHOS
-Internal HF module: TD-ISRM
-Number of channels: 24 channels
-Operating voltage range: 6.5 ~ 8.4V (2S Li battery)
-Operating temperature: -10°C~60°C (14°F~140°F)
-Battery compartment size: 86x61x20mm (LxWxH)
-Data transmission and charging interface: USB Type-C
-USB adapter voltage and current: 5V+0.2V, >2.0A
Built-in flash memory: 8GB
-4.3-inch touchscreen main display Resolution: 800×480
-Upper 2.4" colour display resolution: 320×240
-Compatibility: ACCST D16 & ACCESS 2.4G & ACCESS 868Mhz & TD Mode
Scope of delivery:
-TANDEM XE with LiPo battery (Mode 2)
-USB data and charging cable
-Transmitter harness
-Softcase
-Brief instructions (English)
