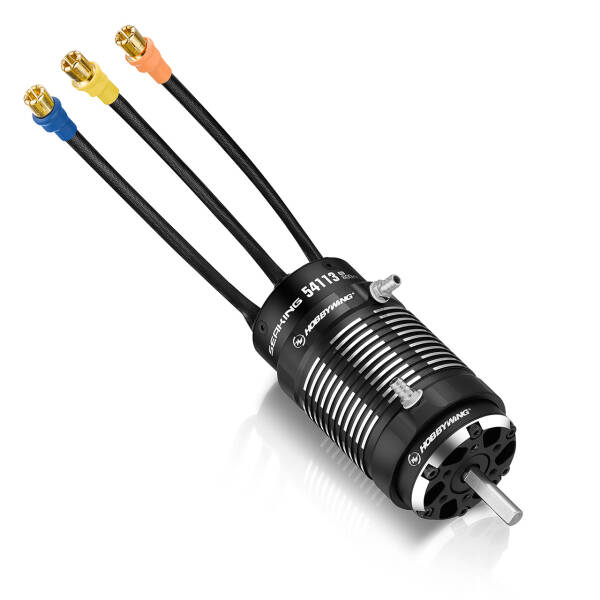

Hobbywing Seaking 54113SL 800kV V2 brushless motor for boats
Specially developed for large model boats with high performance and low operating temperatures thanks to efficient heat dissipation.
Constructed with a high-strength CNC aluminium housing, high-quality bearings, ultra-thin silicon steel laminations, high-temperature copper wire, high-temperature rotor and high-strength output shaft. Each material has been carefully selected to ensure that the motor delivers long-lasting and stable performance.
The motor's water cooling jacket features a highly efficient internal circulation design with external cooling fins. There are ventilation holes on the front and rear end caps and a blade-shaped fan.
This design not only enables fast motor cooling, but also ensures stable performance and consistent power output during prolonged high power and high torque operation.
Combined with the SeaKing V4 controllers, the motor offers smoother control, quicker response and a more exhilarating riding experience!
short summary:
-optimised cooling system with additional cooling openings
-fans inspired by propeller designs
-Water cooling jacket with circulation design
-CNC-machined housing
Technical data:
Speed: 800kV
No-load current: 6.7A
Number of cells LiPo: 8-12S
Number of poles: 4
Length: 113mm
Diameter: 54mm
Shaft diameter: 8mm
Weight: 1260g
Application: Boats ≤180cm
recommended speed controller: SeaKing 300A HV V4
