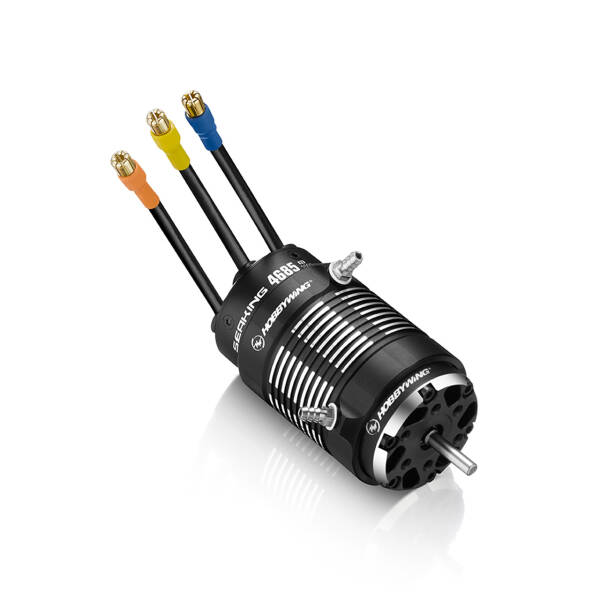

Hobbywing Seaking 4685SL 1500kV V2 brushless motor for boats
Specially developed for large model boats with high performance and low operating temperatures thanks to efficient heat dissipation.
Constructed with a high-strength CNC aluminium housing, high-quality bearings, ultra-thin silicon steel laminations, high-temperature copper wire, high-temperature rotor and high-strength output shaft. Each material has been carefully selected to ensure that the motor delivers long-lasting and stable performance.
The motor's water cooling jacket features a highly efficient internal circulation design with external cooling fins. There are ventilation holes on the front and rear end caps and a blade-shaped fan.
This design not only enables fast motor cooling, but also ensures stable performance and consistent power output during prolonged high power and high torque operation.
Combined with the SeaKing V4 controllers, the motor offers smoother control, quicker response and a more exhilarating riding experience!
short summary:
-optimised cooling system with additional cooling openings
-fans inspired by propeller designs
-Water cooling jacket with circulation design
-CNC-machined housing
Technical data:
Speed: 1500kV
No-load current: 4.7A
Number of cells LiPo: 6-8S
Number of poles: 4
Length: 85mm
Diameter: 46mm
Shaft diameter: 5mm
Weight: 642g
Application: Boats ≤140cm
recommended speed controller: SeaKing 200A HV V4
