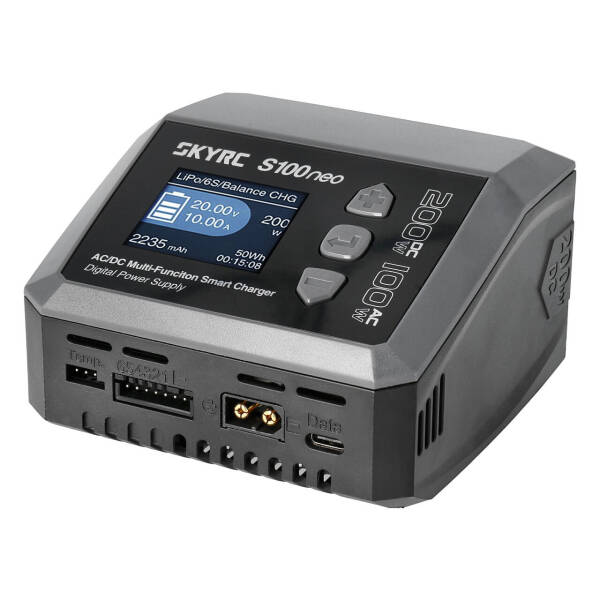

The S100neo builds on the SkyRC e680 and has an impressive AC 100W/DC 200W output that combines versatility with powerful charging capabilities. The colour LCD screen enhances the user experience with intuitive navigation and easy monitoring. The S100neo is more than just a charger; it is also an advanced digital power supply that enables precise and efficient charging in both constant current (CC) and constant voltage (CV) modes. With its dual power input, the S100neo effortlessly delivers up to 100W from an AC source and boasts a powerful 200W output on a de facto standard XT60 DC plug for RC hobbyists. This versatility ensures that the S100neo fulfils a wide range of charging requirements, whether at your hobbyist's table or at the flying field or swimming lake. Experience unrivalled charging precision with the S100neo's advanced balancing technology. With a robust balancing current of 1000 mA, the S100neo far exceeds the 300 mA of the e680 and offers faster and more efficient cell balancing. This ensures that each cell is optimally charged, resulting in perfect harmony and peak performance.
Do more with a charger!
The S100neo charges effortlessly at up to 12A!
With its exceptional versatility, the S100neo can charge a wide range of batteries. This powerhouse can charge LiPo and LiFe as well as Li-Ion, LiHV, Pb, NiMH and NiCd. Whether you're an RC guru, a beginner or somewhere in between, the S100neo is the reliable and adaptable choice that ensures optimal performance for all your batteries.
Multiplied discharge through balance port
The in-built balance port enables faster discharge of the S100neo, which can discharge at up to 20W when connected to the main port. In contrast, the discharge power is limited to just 5 W when using the main connection alone.
Easy checking of batteries
When the balance port is connected, the S100neo is a versatile battery tester that can measure the cell voltage and balance status of LiPo, LiHV, LiFe and LiIon batteries. The total voltage and the voltage of the individual cells are displayed immediately to determine whether the battery is fully charged or empty and whether it needs to be balanced.
Digital performance
S100neo is not only a professional charger, but can also be used as a digital power supply. After one click on the menu, S100neo is ready for your application and offers an optimal voltage of 2-30V with 0.1V steps and adjustable current of 0.1-12A.
DC output: provides dedicated and efficient DC power, eliminating the need for a separate power supply. Variable voltage and current: A digital DC power supply usually allows the voltage and current to be set over a wide range. This allows it to supply power to a wide range of electronic devices and circuits.
Reliable protection
With built-in overvoltage, overcurrent and overtemperature protection, the S100neo can prevent damage to the power supply itself and to the connected devices or circuits.
Motor run-in in perfection
S100neo has a motor run-in function that is crucial for the optimum performance of brushed motors. This function is used to fine-tune the motor by varying the speeds for ideal brush alignment, increasing efficiency and reducing wear.
This feature is essential for RC enthusiasts to ensure the longevity and peak performance of their equipment.
Improved protection is guaranteed safety
The SkyRC S100neo charger is equipped with several important safety features that ensure optimal charging safety.
"Quiet, quiet - I'm charging!"
Even at full power, the S100neo's fan operates at a maximum of 48 dB*, which is acceptable for most users. So you can work undisturbed and without distraction.
Load in your language
With a responsive Web2.0 menu and smartphone-like icons, the interface offers an intuitive user experience. ColorX is designed to be easy to localise and convenient to use!
The user interface is currently available in English, Dutch, French, Chinese and Japanese. Users can change the language with simple clicks so they can load in the language they are most comfortable with.
Easily connect your S100neo to your PC or Mac via the versatile Type-C port. With Charger Master, you have full control and can improve your charging experience. Adjust charging rates, monitor battery status and optimise performance for longer battery life.
Easy upgrade with the app. Enjoy a quick and reliable upgrade process to improve the capabilities of your charger.
Technical specifications:
Size: 105*105*62mm
Weight: 340g
Power supply: DC input voltage: 6-30V
AC input voltage: 100-240V 50/60Hz
Power: AC: 100W MAX
DC: 200W MAX
Discharge power: Max. 20W based on 6S(4.2V/S)
Battery types/cells: LiPo/LiHV/LiFe/LiIon: 1-6cells
NiMH/NiCd: 1-15cells
Pb: 3S/6S/12S
Charging current: 0.1-12.0A
Discharge current: 0.1-2.0A
Balancer: Max. 1000mA
LiPo/LiFe/LiIon/LiHV: Equilibrium charging, charging, discharging, storage
NiMH/NiCd: Charging, discharging, charge-discharge cycle, discharge-charge cycle, repeat charging
Pb: Normal, standard charge, low temperature charge, AGM charge/discharge
Digital power: CC/CV mode
Brush motor run-in
Battery voltmeter
