The steering wheel for young captains
The FlySky i4X remote control is the ideal entry-level system for young captains and newcomers. It is equipped with 4 channels and a long range and is perfect for everything from aeroplanes to RC cars and model boats. The Quicrun 1060 speed controller can gently control boat engines with up to 60A forwards/backwards. The integrated BEC supplies the rudder servo and receiver. The receiver offers a wide range of connection options, while being lightweight and small in size. This means that it can also be used in small boats. In addition to driving and steering, the 4 channels offer further options such as the connection of switching modules for sound or smoke generators, additional servos and sail winches for special functions. Remote control suitable for all models. The control sticks can be operated sensitively and precisely. All channels have a reverse switch. A V-part mixer is available. The remote control has a teacher-pupil socket on the back. We have included a servo with standard dimensions and 6.5kg pulling force in the set, which can be used to control any rudder safely.
In principle, it is possible to expand the transmitter to 10 channels using a DIY process.
One of the pictures shows the typical connection of controller/motor/battery and servo.

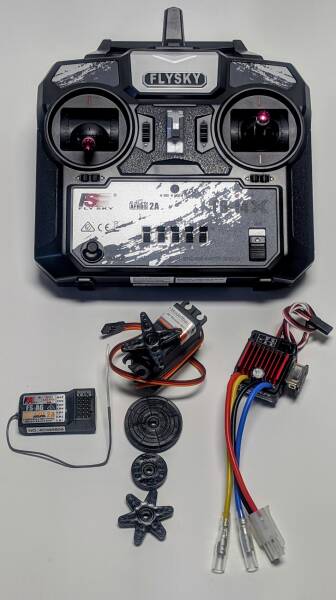

Included in delivery:
i4X transmitter
6K receiver
German manual
Speed controller Quicrun 1060
Servo
Technical data Controller:
Number of channels 4 channels (max. 10)
Frequency 2.4 GHz
Modulation system AFHDS 2A
Receiver: 10g
Power source: 4 x AA alkaline batteries (6V) (not included)
Receiver: DC4-6.5V
Antenna output 1.5 mW / MHz
Range Air: 1500m, Land: 500m, Water: 150m
Technical data controller:
Continuous current: 60A
Max. current short-term: 360A
BEC voltage: 6V / 3.0A
Number of cells LiPo: 2-3
Number of cells NiCd/NiMH: 5-9
Weight: 39g
Dimensions: 36.5 x32x18mm
Technical data Servo:
Voltage: 4.8V-6V
Torque:(4.8V) 5.5 kg/cm, (6 V) 6.5 kg/cm
Gear: plastic
Ball bearings: yes
