Sensorless brushless outrunner for RC models and model ship propulsion systems

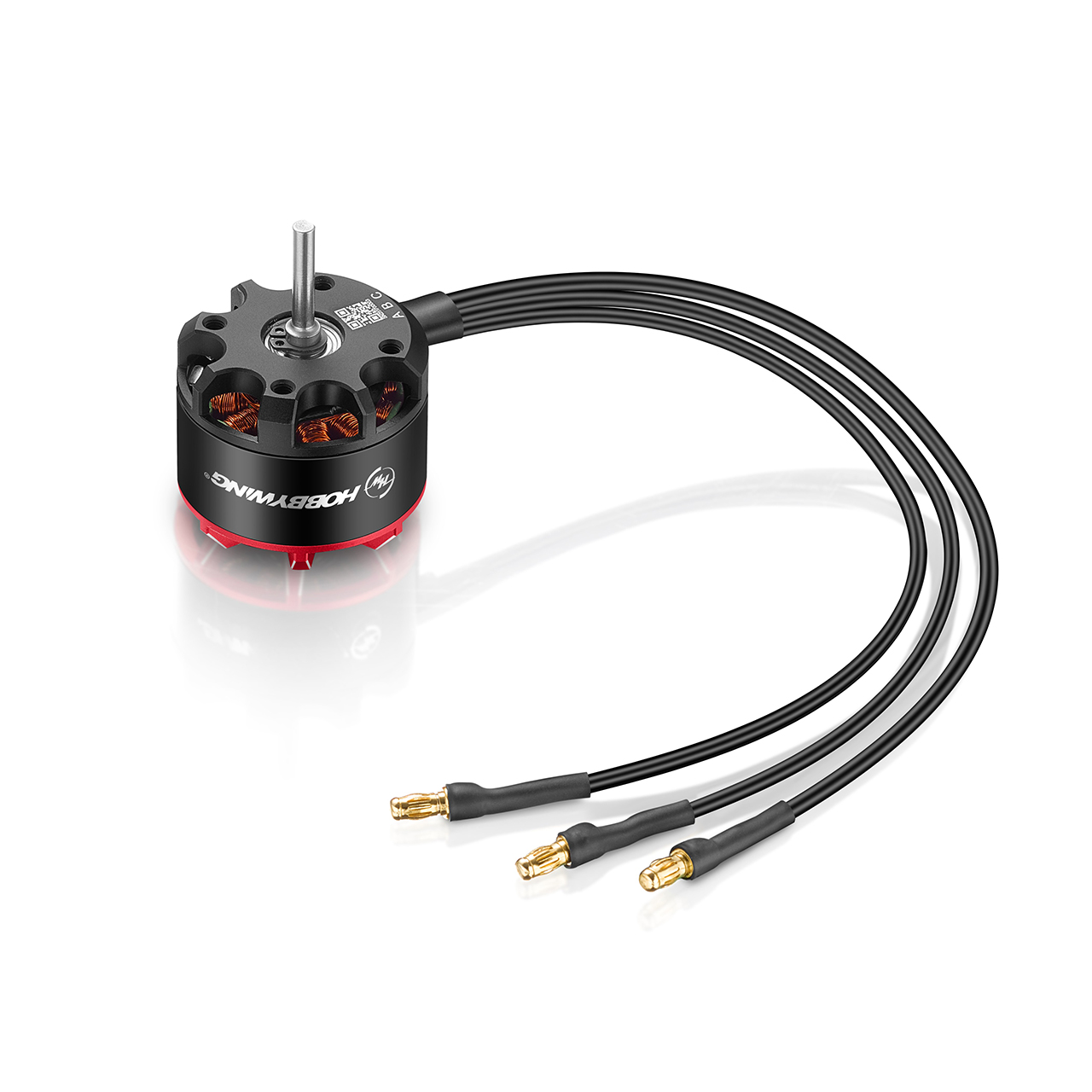

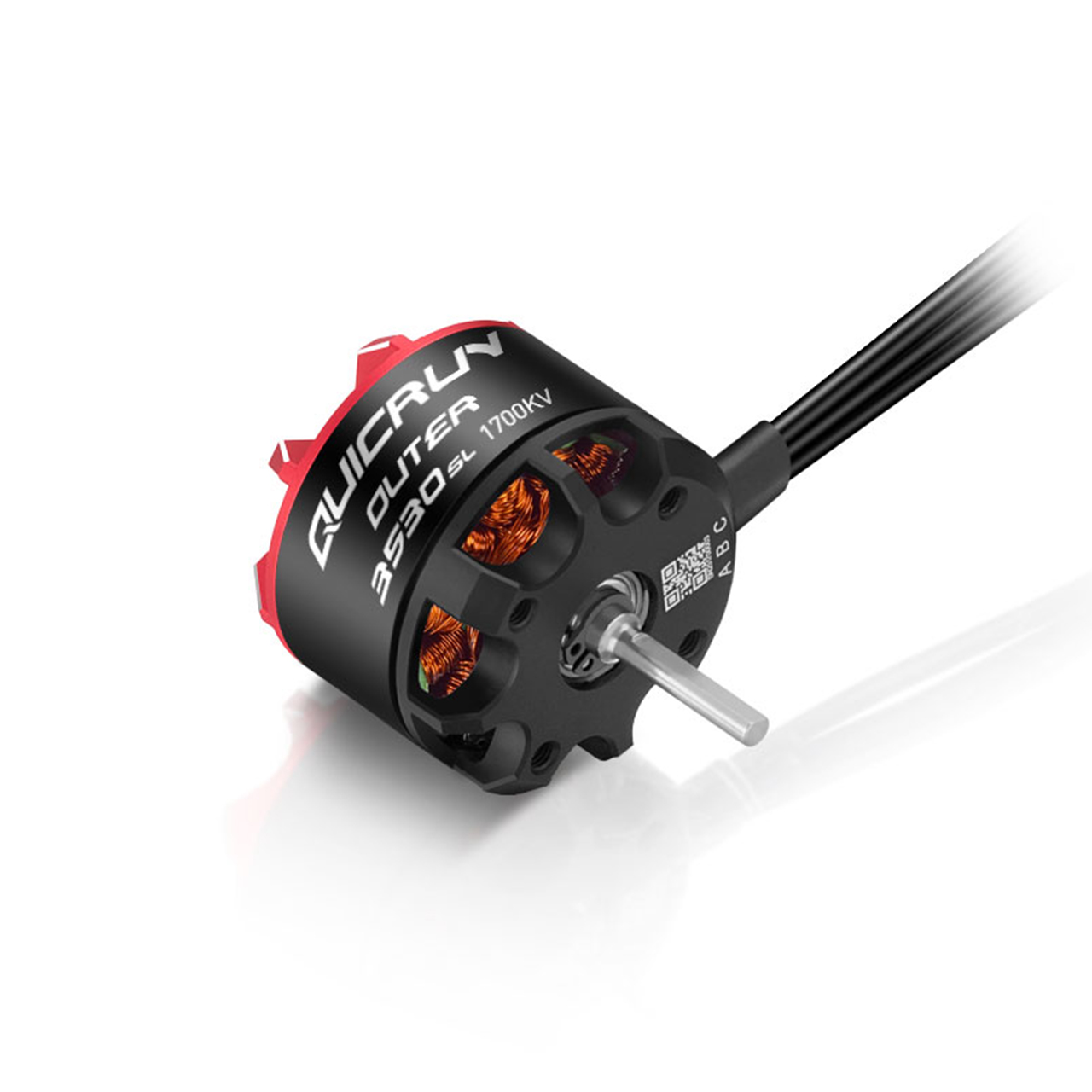

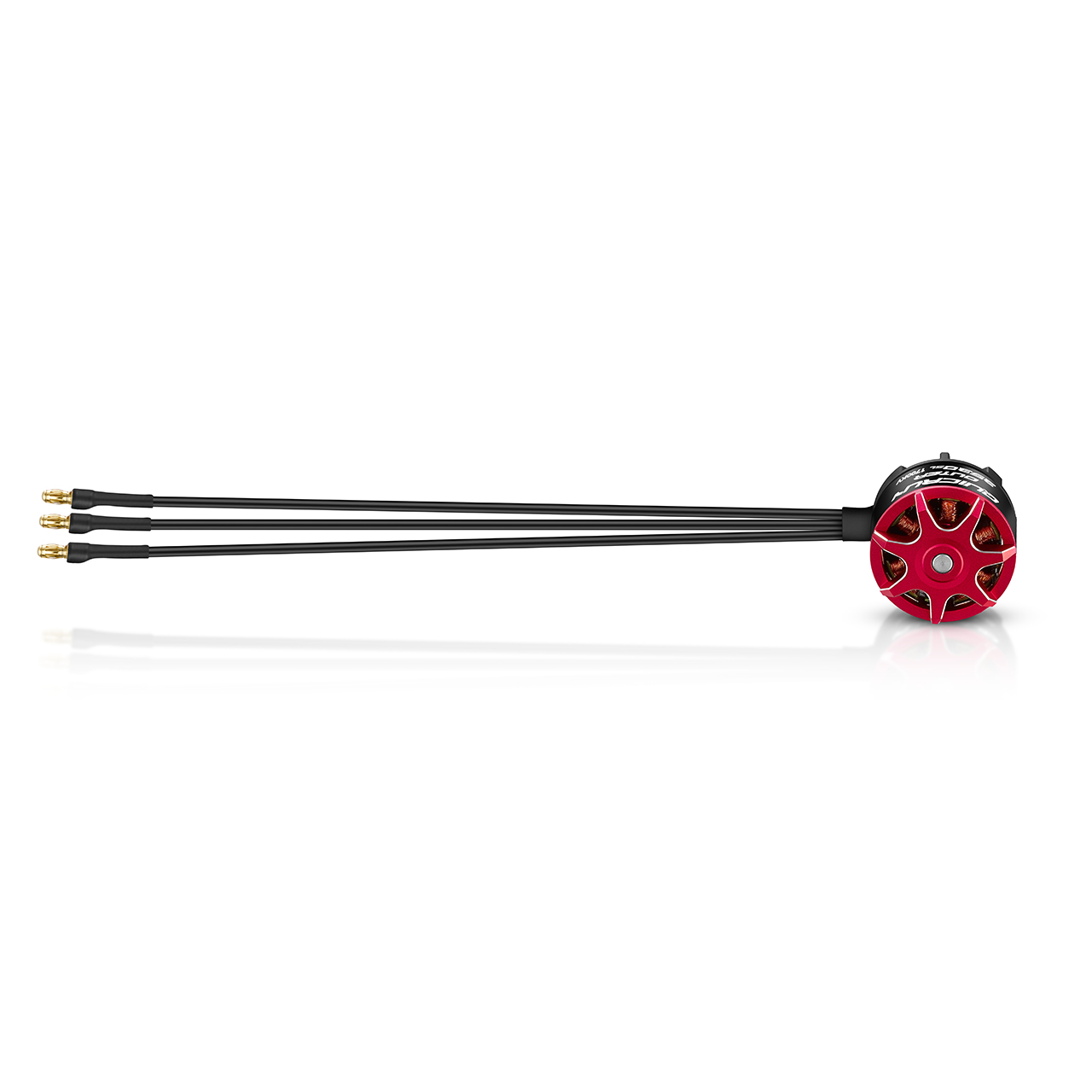

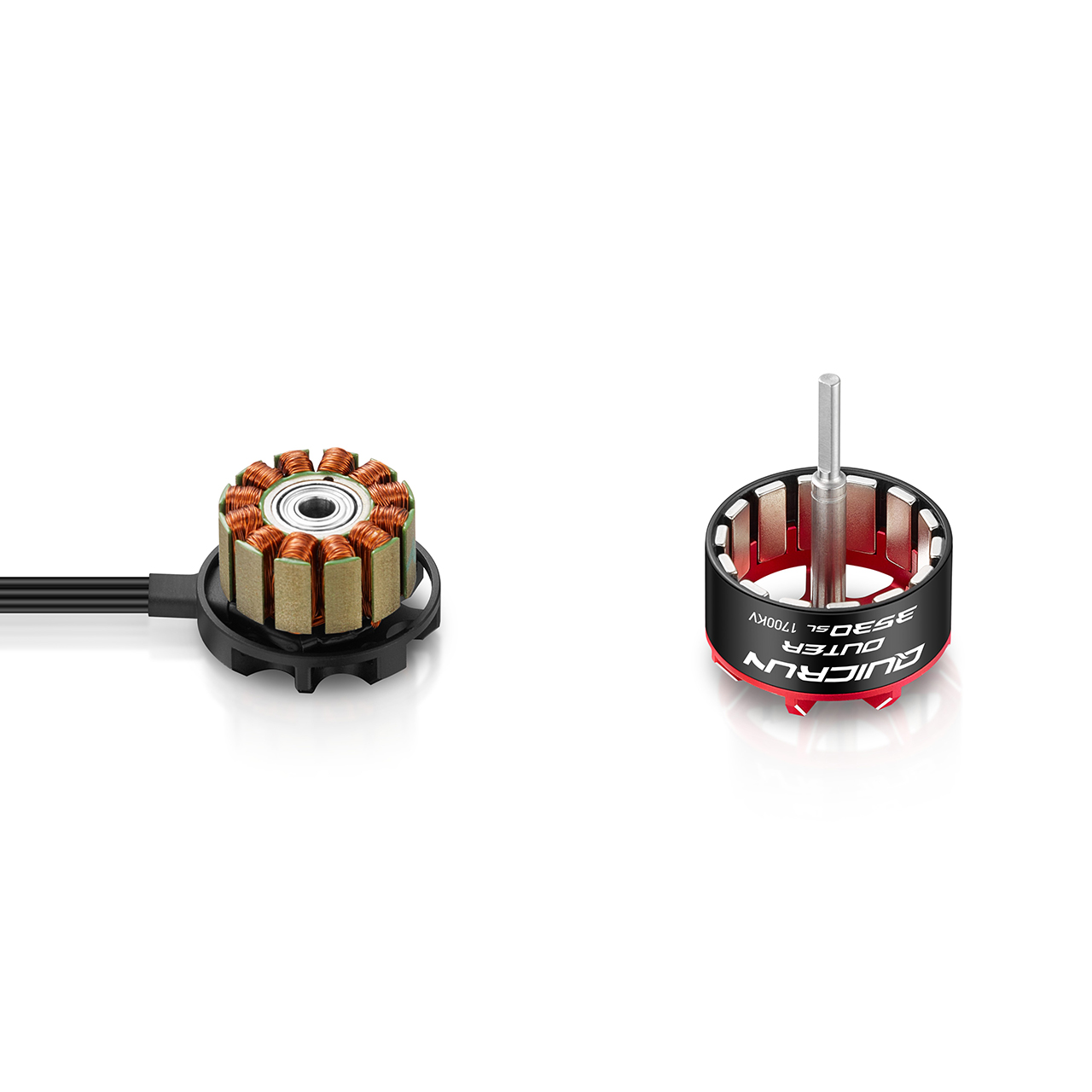

The Hobbywing QuicRun Outer 3530 SL brushless motor is a high-quality, sensorless outrunner designed for 1/10–1/12 scale RC models. With its 14-pole design, precisely balanced rotor and use of durable materials, the motor offers high efficiency, smooth running and reliable power output across the entire speed range.
Performance features of the Hobbywing QuicRun Outer 3530 SL
The Brushless Outrunner 3530 SL is characterised by smooth torque delivery and sensitive throttle response. These features ensure excellent controllability and harmonious response. The compact design allows for use even in limited space, while the standardised motor mounting allows for easy integration into existing drive systems. Pre-assembled 3.5 mm gold connectors facilitate quick connection to compatible brushless speed controllers.
Areas of application in RC model making
The Hobbywing QuicRun Outer 3530 SL is ideal for RC crawlers, scale vehicles and truggies that require controlled power delivery and high efficiency. The smooth motor operation reduces vibrations and contributes to a longer service life for the drive components.
Suitable as a model ship drive
Thanks to its smooth operation, high torque at low speeds and stable speed under load, the QuicRun Outer 3530 SL is also ideal for model ship drives. Especially in scale boats, functional models, displacement boats and semi-planing boats, the motor enables realistic sailing and precise manoeuvring. In conjunction with a suitable brushless controller with forward and reverse function, the motor can be used in both direct drive and gearbox applications.
Advantages for model builders
The Hobbywing QuicRun Outer 3530 SL brushless motor offers a balanced combination of power, efficiency and versatility. It is a reliable solution for model builders looking for a robust brushless motor that can be used both in the RC vehicle sector and as a drive for model ships.
Technical data Hobbywing QuicRun Outer 3530 SL
Motor type: Sensorless brushless outrunner Poles: 14 KV variants: 1700 KV, 2200 KV Operating voltage: 2–4 S LiPo No-load current: approx. 4–5 A Dimensions: Ø 35 mm × 30 mm Shaft diameter: 3.175 mm Weight: approx. 102 g Connection: 3.5 mm gold plug Motor mounting: 25 mm hole spacing
