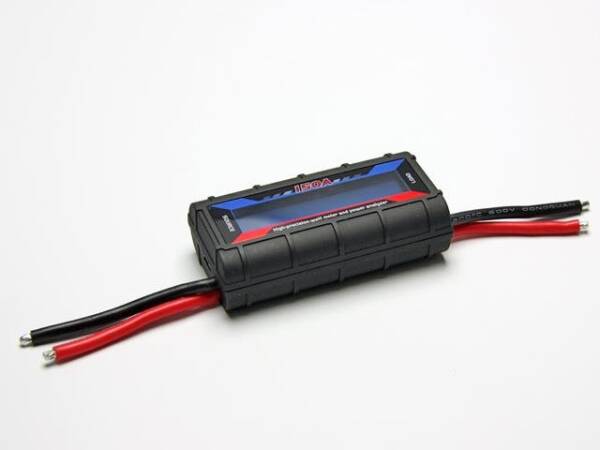

Power Watts 150A - This small wattmeter measures currents up to 150A and is simply looped between the power source (battery) and the load (motor/controller).
Indispensable for optimising a model drive and for recording the key figures. With the measuring device, the values can be easily checked and damage to the motor and electronics due to overload can be easily avoided. The Power Meter can also be a great help in choosing the right propeller.
The wattmeter with power analyser can be used to determine the following values:
- Current with peak value display
- Voltage with minimum value display
- Power consumption with peak value display
- Capacity quantity during charging / discharging of batteries
- Energy throughput
The display constantly shows the values of the current in A, the voltage in V as well as the absorbed
power in W are constantly displayed. All other values are alternately visualised at the position 'Data Queue'. These are the charged or discharged capacity in Ah,the energy throughput in Wh, the peak current value in Ap (Ampere peak), the minimum voltage value in Vm and the peak power consumption value in Wp.
Technical data:
Voltage range:
4.8 V to 60 V
0.0 V with optional additional battery
Measured values:
0 - 150 A, resolution 0.01 A
0 - 60 V, resolution 0.01 V
0 - 6594 W, resolution 0.1 W
0 - 65 Ah, resolution 0.1 Ah
0 - 6594 Wh, resolution 0.1 Wh
Dimensions: 85 x 42 x 25 mm
Weight: 82 g
