Flysky i4X 2.4 GHz 4-channel remote control system for RC aeroplanes and model boats
The Flysky i4X 2.4 GHz remote control system is a reliable and user-friendly RC remote control for beginners and hobbyists. Equipped with the modern AFHDS2A transmission protocol, the transmitter offers a stable, interference-free radio connection with high operational reliability and good range.
The ergonomically designed 4-channel RC transmitter is ideal for RC aeroplanes, gliders, RC boats and model ships. Features such as channel reversal, mixing functions and the option of DIY expansion to up to 10 channels make the system flexible and future-proof. The transmitter comes in Mode 2 as standard and can be switched to Mode 1.
The set includes a Flysky FS-A6 receiver, which is versatile thanks to its compact design and AFHDS2A compatibility. The transmitter is powered by standard AA batteries, which makes it particularly easy to use.

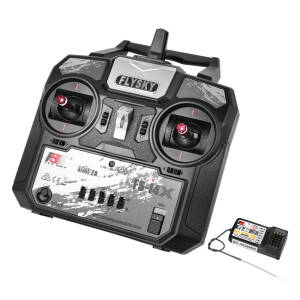

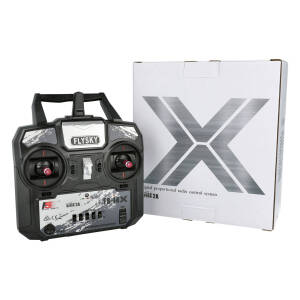

Scope of delivery

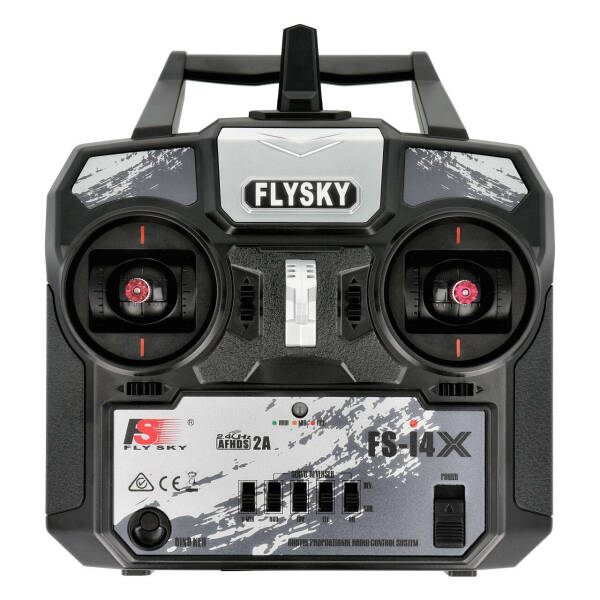

Flysky i4X 4-channel 2.4 GHz RC transmitter
Flysky FS-A6 6-channel receiver
Operating instructions
Technical data – transmitter
Radio frequency: 2.4 GHz (2.405–2.475 GHz)
Transmission protocol: AFHDS2A / AFHDS
Number of channels: 4 (expandable to 10)
Resolution: 1024 steps
Transmission power: < 20 dBm
Range: in the air up to approx. 500–1500 m, for RC model boats on water approx. 300–500 m, depending on antenna position, environment and interference
Control modes: Mode 2 (standard), switchable to Mode 1
Power supply: 4 × 1.5 V AA batteries (not included)
Dimensions: approx. 174 × 89 × 190 mm
Weight: approx. 323 g
Operating temperature: 0 °C to +60 °C
Technical data – receiver (FS-A6)
Number of channels: 6
Operating voltage: 4.0–6.5 V
Transmission protocol: AFHDS2A
