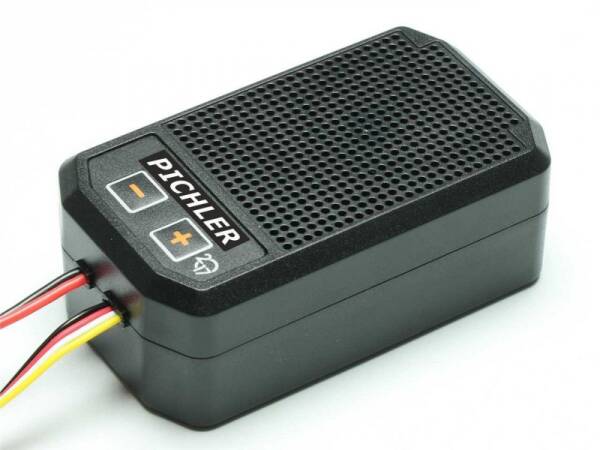

Motor Sound System+ for RC car models
The module uses an advanced DNS/DCR algorithm to reproduce the sound of real engines.
The sound output is calculated in real time based on throttle input and throttle movement speed and combined with the actual engine speed to produce a sound closest to the real engine condition plus an AUX channel that can simulate a variety of sounds such as an alarm is also available. A special sound can be controlled independently of a third channel on the transmitter, e.g. alarm or horn.
The module has memory locations for two sets of engine sounds, allowing quick switching between the engine sounds. Two different sounds with different brakes, turbos and settings can be installed and then easily switched with one button.
The module has an integrated speaker (20W) and a D-Class amplifier chip for efficient performance and high-quality sound output. Depending on the voltage applied, the volume increases and must be adjusted accordingly. Too high a volume can destroy the speaker! The small size allows installation in many models, a complete cable set is included.
Sounds and firmware updates are available free of charge and in a huge selection in the RCPLUS Store from SESNEInnovatios and can also be tested there.
Technical data
Voltage：5-26V
Speaker impedance：4Ohm
Output power under 4 Ohm：20W at 12V
Number of audio channels：1 channel 30W max
Output: is short-circuit, overload and temperature protected
Input: NOT protected against reverse polarity
