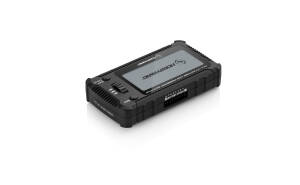

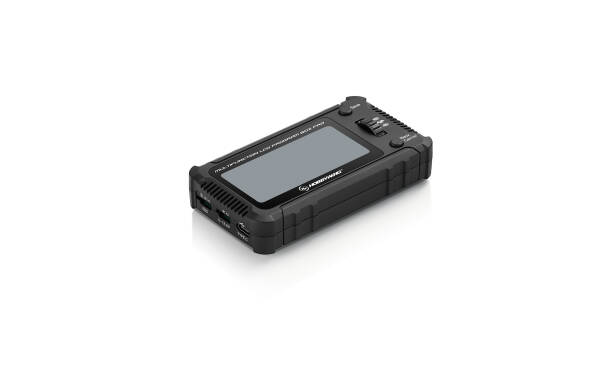

Hobbywing LCD programming card and data logging box
The multifunctional LCD programming box Pro with its 2.8'' LCD screen offers the possibility to programme brushless speed controllers quickly and easily.
On the Fly (OTA) - data and settings can be made wirelessly via the mobile APP HW Link V2. The box can also be connected to a computer via USB-C, for example to update the firmware. The LCD box can also measure the voltage of individual lithium cells or entire packs, making it a fully-fledged battery tester.
Note: Please refer to the programming settings of your controller to find out which values can be set. Do not supply the programming box with power unless the instructions for your controller state that the programming box must be supplied with an external power supply.
Features:
-High-contrast display with a screen diagonal of 2.8'' (approx. 7 cm)
-Adjustment of the backlighting in 20 available levels
-Easy operation thanks to control wheel
-Save and load controller settings
-Built-in battery tester for 1-8S batteries
-Integrated Bluetooth signal
-Compatible with the HW Link V2 app (iOS and Android)
Supports the following controllers:
-XERUN car controllers: version 2.0 and newer
-EZRUN car controller: Version 2.0 and newer
-PLATINUM helicopter/flight controller
-Seaking Pro boat controller
-Seaking V4 controller
-Selected QUICRUN car controllers
The map can currently only be set to Chinese, English and Japanese.
Technical data:
Input voltage DC: 5-12.6V
Connections: - USB Type-C,- Controller,- Power supply
Display: 2.8'' LCD
LiPo measurement: 2-8S LiPo / LiIon / LiFe
Measurement accuracy: +/- 0.1V
Size: 105.6x59.24.4mm
Weight: 85g
