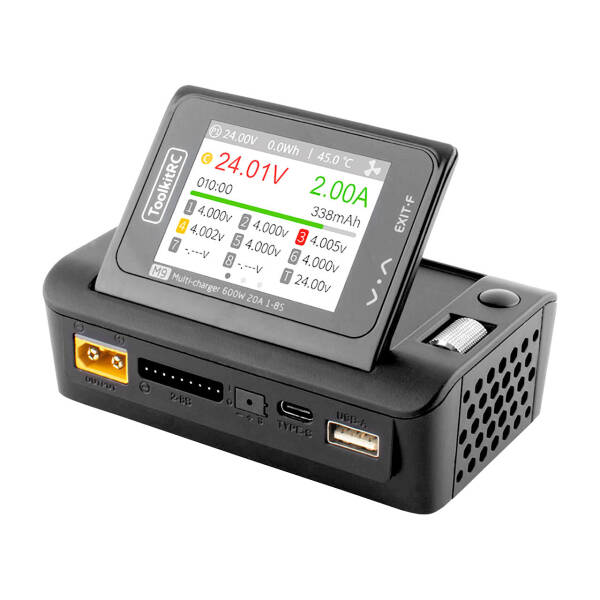

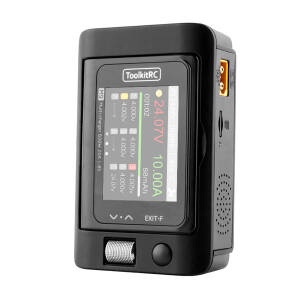

ToolkitRC M9 Smart DC charger for 7-35V
With plenty of power, an unrivalled design and numerous customisation options, the M9 charger is the perfect companion for on the go. The foldable colour display provides the necessary comfort and a clear view even in bright sunshine. Up to 600W charging power is possible with the M9. This means that all standard 2-8S LiXX batteries and up to 20S NiMH batteries can be charged. Mobile devices can recharge via the USB type-A and type-C outputs at 65W.
The M9 is not only suitable for charging but also provides a discharger, recycle mode and test functions for receivers and servos as well as a power supply unit.
Current charging statuses are announced by voice output.
-600W DC charging power and maximum 20A charging current
-Compact design - ideal for travelling
-High-contrast LCD colour display that can be angled up to 80°
-Free customisation of the start screen and voice prompts possible
-Signal source and tester (PWM, PPM, SBUS)
Scope of delivery:
1x M9 charger
1x USB cable
1x instruction manual (English)
Measurement & output:
Measurement PWM 880us-2200us, 20-400hz
PPM 880us-2200us x8 CH, 20-50hz
SBUS 880us-2200us x16 CH, 20-100hz
Output PWM 500us-2500us, 20-1000hz
PPM 880us-2200us x8 CH, 20-50Hz
SBUS 880us-2200us x16 CH, 20-100Hz
Current 1.0-35A, 1-20A, mode: CC+CV
Technical data:
Input voltage: DC 7.0-35.0V, max. 25A
Charging current: 0.1-20A, 600W
Discharge current: 3A , 20W
max. 20A (mode: Recycle), 600W
Balancer current: 1000mA, 4.2V
USB: 65W, 5.0-20.0V or upgrade via USB-A
Number of cells: LiPo/LiHV/LiFe/Lion/LTO: 1-8S
Number of cells: NiMH: 1-20S
Number of cells: Pb: 1-10S
Dimensions: 108x71x36mm
Weight: 235g
