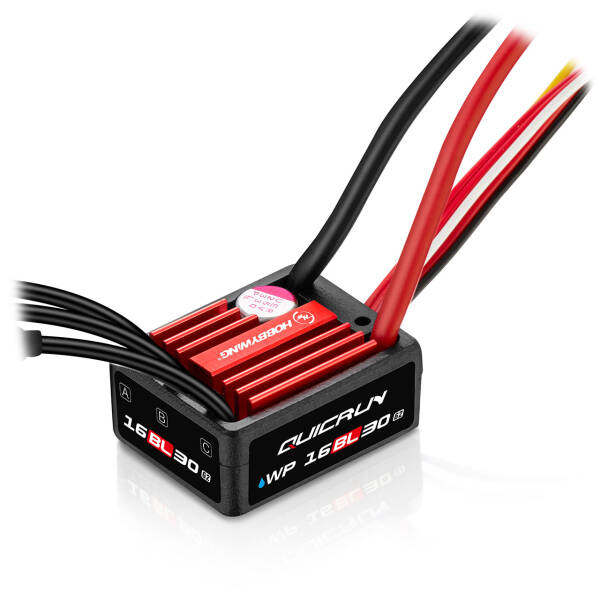

The Hobbywing QuicRun WP 16BL30 G2 is a compact, powerful and fully waterproof brushless controller designed specifically for small to medium-sized RC models. Its sensorless brushless technology enables clean, sensitive start-up behaviour and stable power output – ideal for dynamic driving manoeuvres in RC cars, boats and ship models. Thanks to its IP67 protection class, the controller is well protected against dust, splash water and humid environments, making it extremely reliable, especially in ship modelling and off-road applications.
The powerful integrated BEC output with selectable voltage ensures a constant supply even to powerful steering or rudder servos. The compact design facilitates installation even in tight chassis or hulls. In addition, the controller can be conveniently configured via the SET button or an optional programming card, allowing both beginners and experienced model builders to flexibly customise it.
Product features
- Smooth start-up and linear control behaviour
- Designed for sensorless brushless motors
- Operating modes: forward/reverse, forward/brake or forward/reverse/brake
- Versatile adjustable brake function
- Adjustable start behaviour (punch) from ‘soft’ to ‘aggressive’
- Comprehensive protection mechanisms:• Low voltage cut-off (LiPo/NiMH)• Overheating protection• Gas signal loss protection• Motor lock protection
- Easy programming via button or optional LED programming card
- Dust and splash-proof (IP67)
Technical data
Type: sensorless brushless controller
Continuous current: 30 A
Peak current: 100 A
Input voltage: 2–3S LiPo
BEC output: 6 V / 7.4 V selectable, 2 A continuous, up to 4 A peak
Protection class: IP67
Connector type: XT60
Suitable motors: sensorless brushless motors
Dimensions: approx. 33.4 × 26.8 × 15.1 mm
Weight: approx. 38.5 g (including cable)
