The AKL-8-W connection terminal enables convenient connection of LEDs and other consumers to the switching outputs of all common Beier Electronic switching modules.
The module is NOT an extension of functions but merely a way of quickly and easily connecting functions and loads to the module. Changes can be made quickly, especially in test mode.

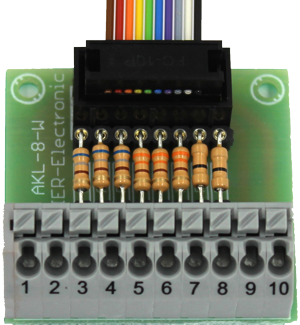

As a special feature, there are 8 slots for series resistors on the AKL-8-W terminal to facilitate the connection of LEDs.
The minus-switching outputs 1 - 8 or 9 - 16 are available directly on a spring-loaded terminal.
The common positive pole is connected to terminals 9 and 10.
Internally, the positive pole is connected to the positive lead of the supply voltage (battery+).
The connection terminal can be plugged directly onto the modules via the ribbon cable.
The AKL-8-W is supplied with 8 resistors each with the values 0 Ohm (only 1 black ring), 150 Ohm (brown, green, brown, gold), 330 Ohm (orange, orange, brown, gold) and 680 Ohm (blue, grey, brown, gold).
