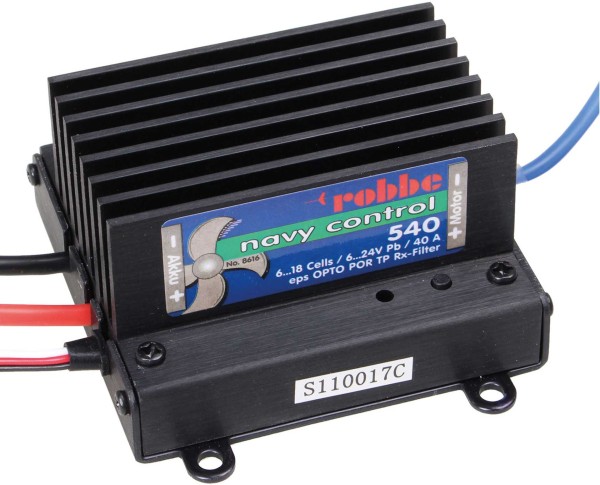

Navy Control 540 R Speed Control ESC

Robbe Navy Control speed controller ESC for model ships

Ship controller with the following functions: Forward - Stop - Reverse, for 600 to 700 motors or multi-motor operation of motors in sizes 500 to 700, as well as for high-performance drives.

Very wide operating voltage range from 6 to 28 volts (6 to 24 V lead-acid batteries). With extreme heat sink, designed for a continuous load current of 40 amps, as required for high-capacity batteries.

-Acrylic lacquer seal to protect against splash water damage.
-Galvanic isolation of receiver and motor circuits to prevent motor-related reception interference
-Input button for programming

Technical data:

Voltage: 6 - 28V
Number of cells: 6-18 NC/NiMH, 2-6S Lipo
Short-term current: 70 A
Load current: 40 A
Dimensions: 75 x 67 x 39 mm
Weight approx.: 231 g
Protective functions: OPTO, eps, Rx filter, PCO, POR, hec 1 kHz, TP, WP
