Digital Servo Waterproof 45.0kg

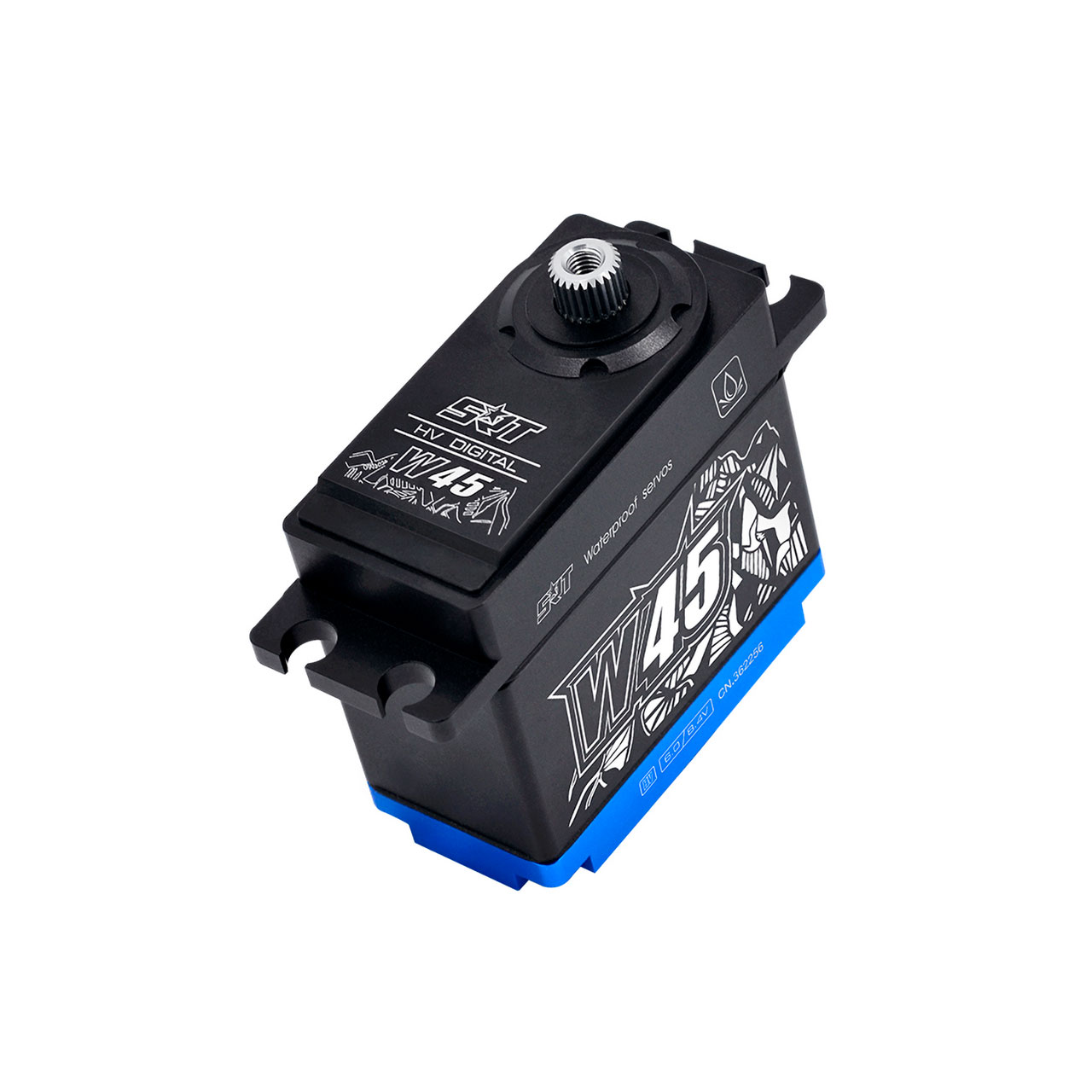

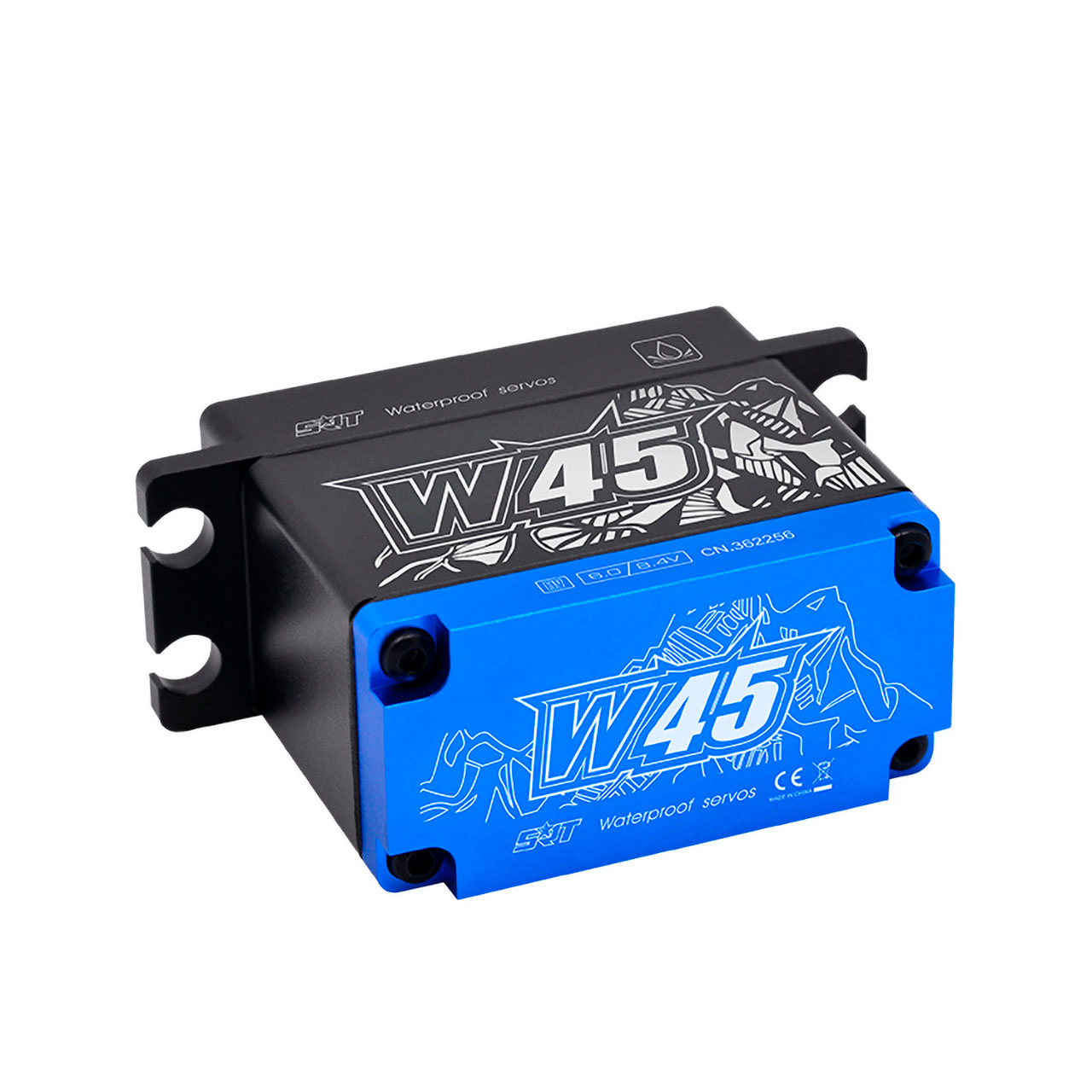

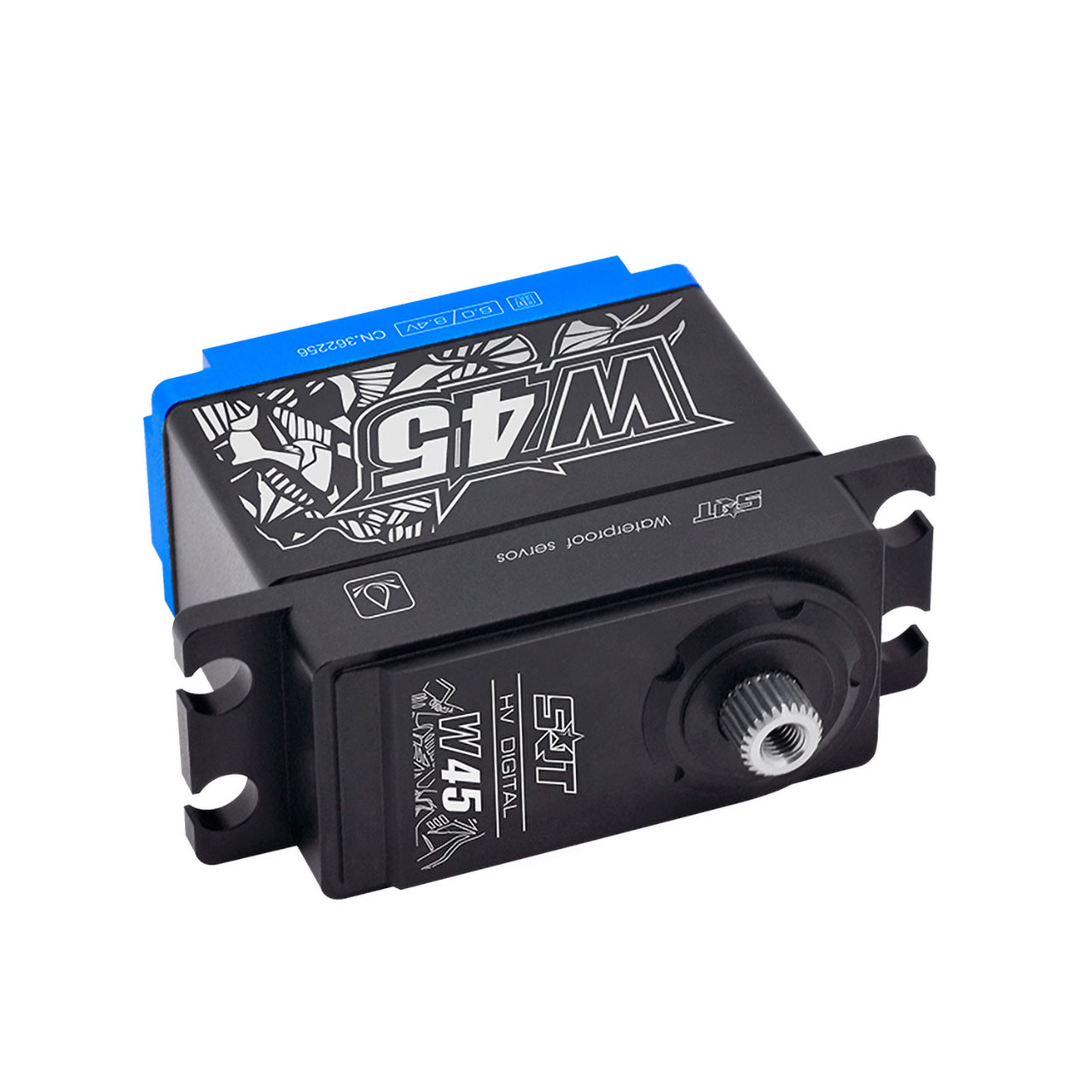

SRT Digital Servo Waterproof – 45.0 kgcm / 0.18 s @ 8.4V (25T)

The SRT Digital Servo Waterproof (45 kgcm / 0.18 s @ 8.4V) is a powerful high-voltage digital servo for RC on- and off-road models (1/10 & 1/8) as well as for electric boats. The aluminium housing ensures high torsional rigidity and stability in tough driving conditions, while the waterproof design provides reliable protection against moisture, dirt and splashing water. The combination of a coreless motor, titanium/steel gearbox and dual NMB main bearing is designed for high holding power and precise positioning accuracy.

Highlights

• Specially designed for RC 1/10 & 1/8 on/off-road and electric boats
• Waterproof – ideal for off-road use in rain, mud and splash water
• Aluminium housing – robust, torsion-resistant and resilient
• Extreme holding force & positioning accuracy – precise steering, stable straight-line running under load
• Dual NMB main bearing – durable bearing and smooth running
• 25T gearing – compatible with many common 25T servo horns
• Coreless motor – fast response and efficient response behaviour
• Titanium & steel gearbox – resistant to high loads

Technical data

• Voltage: 6.0V / 7.4V / 8.4V
• Positioning speed: 0.20 s/60° (6.0V) · 0.19 s/60° (7.4V) · 0.18 s/60° (8.4V)
• Torque: 34.0 kgcm (6.0V) · 40.0 kgcm (7.4V) · 45.0 kgcm (8.4V)
• Motor: Coreless motor
• Gearbox: Titanium & steel
• Type: Digital
• Control frequency: 330 Hz
• Ball bearings: Yes (dual NMB)
• Dimensions: 40.7 × 20.5 × 38.6 mm
• Weight: 82.5 g
• Gear teeth: 25T
• Application: 1/10 & 1/8 on/off-road, electric boat

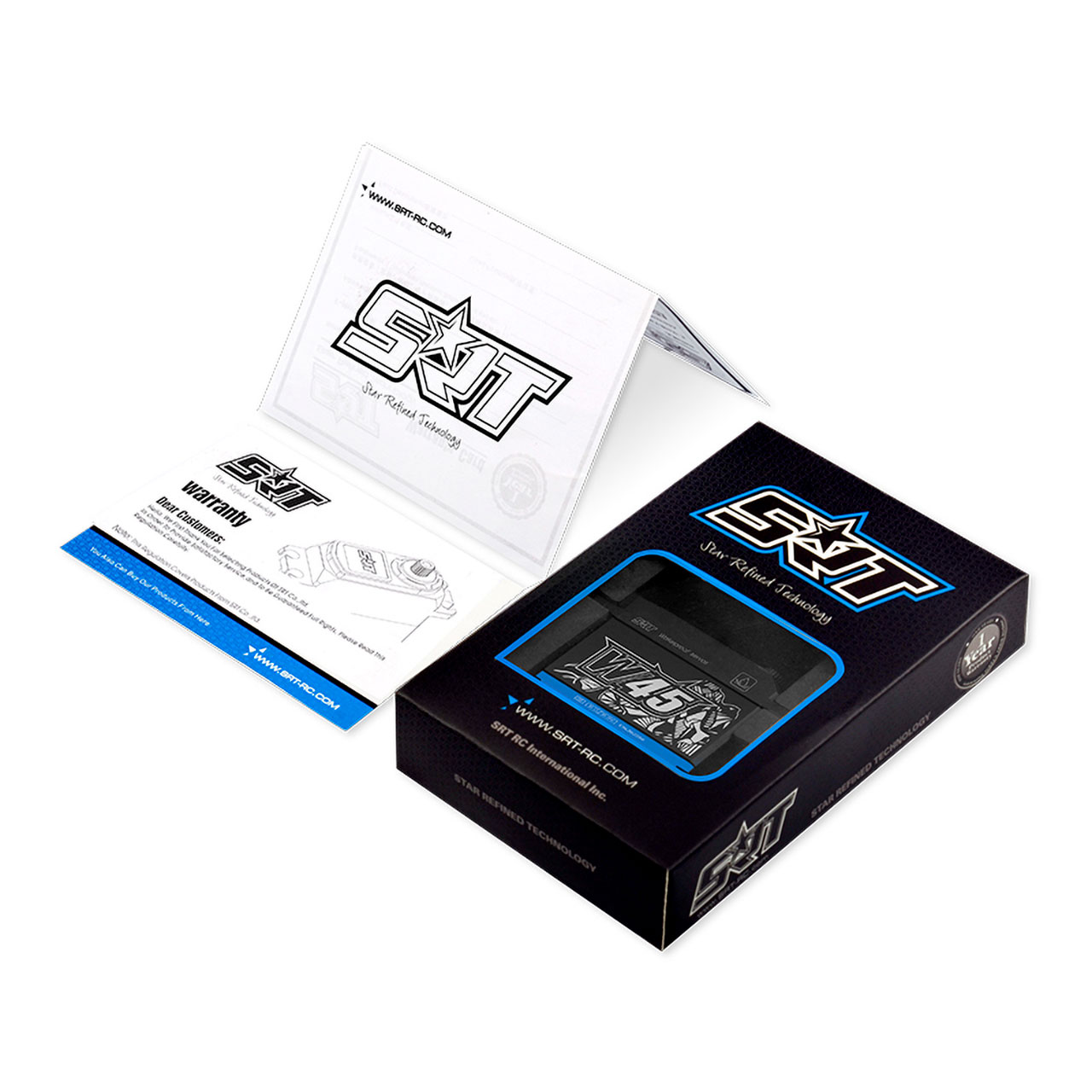

Scope of delivery

• 1× servo
• 1× servo horn
• 1× sticker sheet
