Digital Servo Waterproof 35.0kg

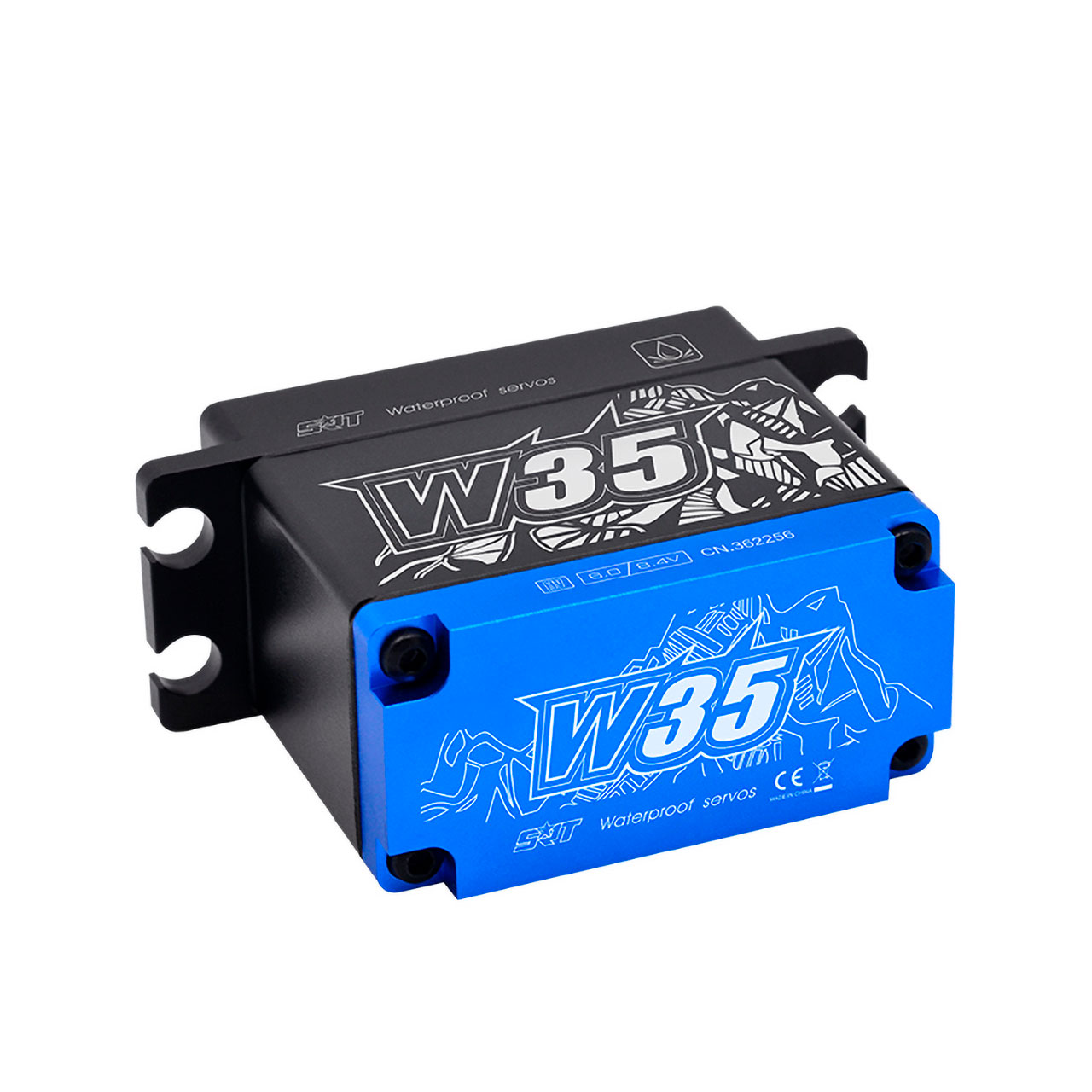

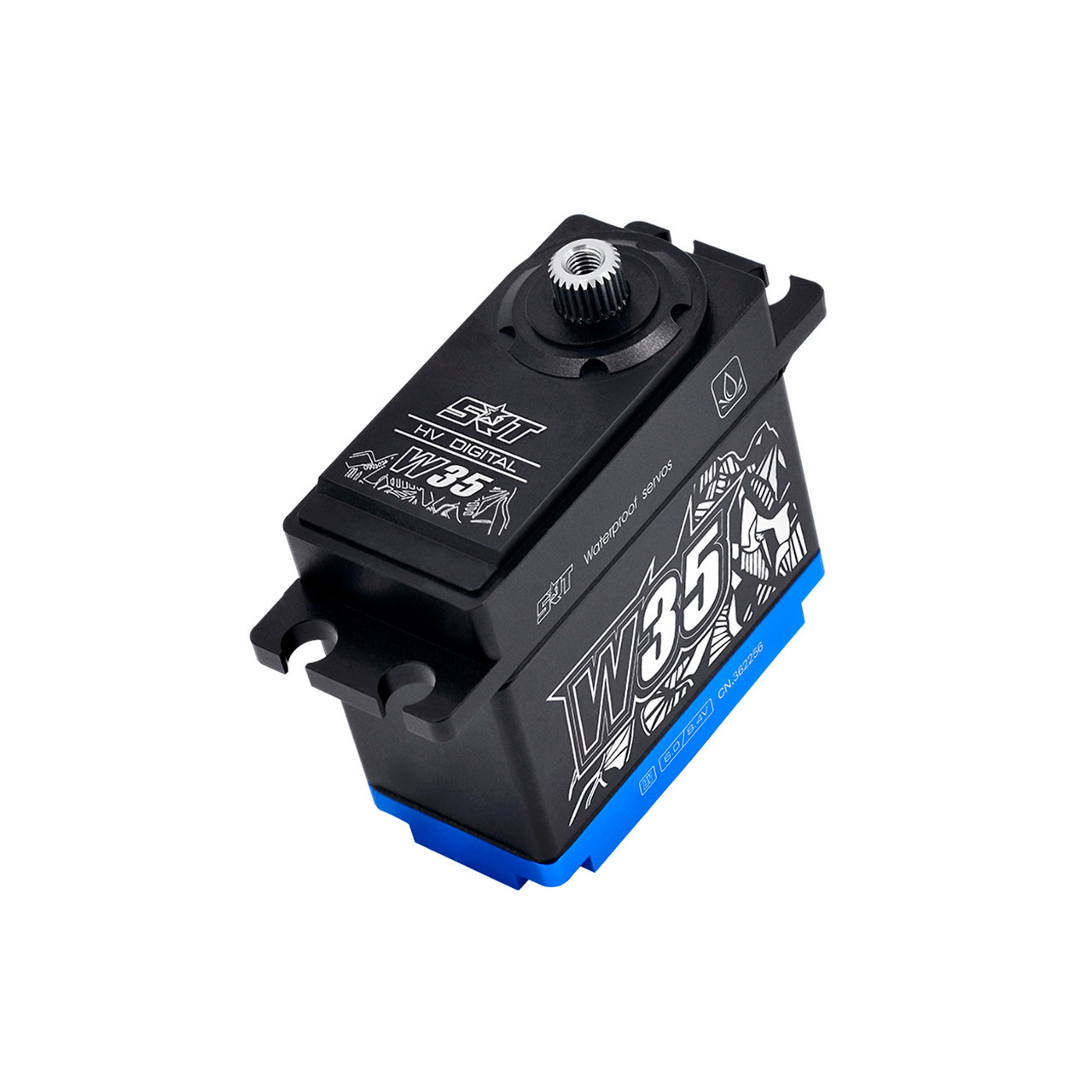

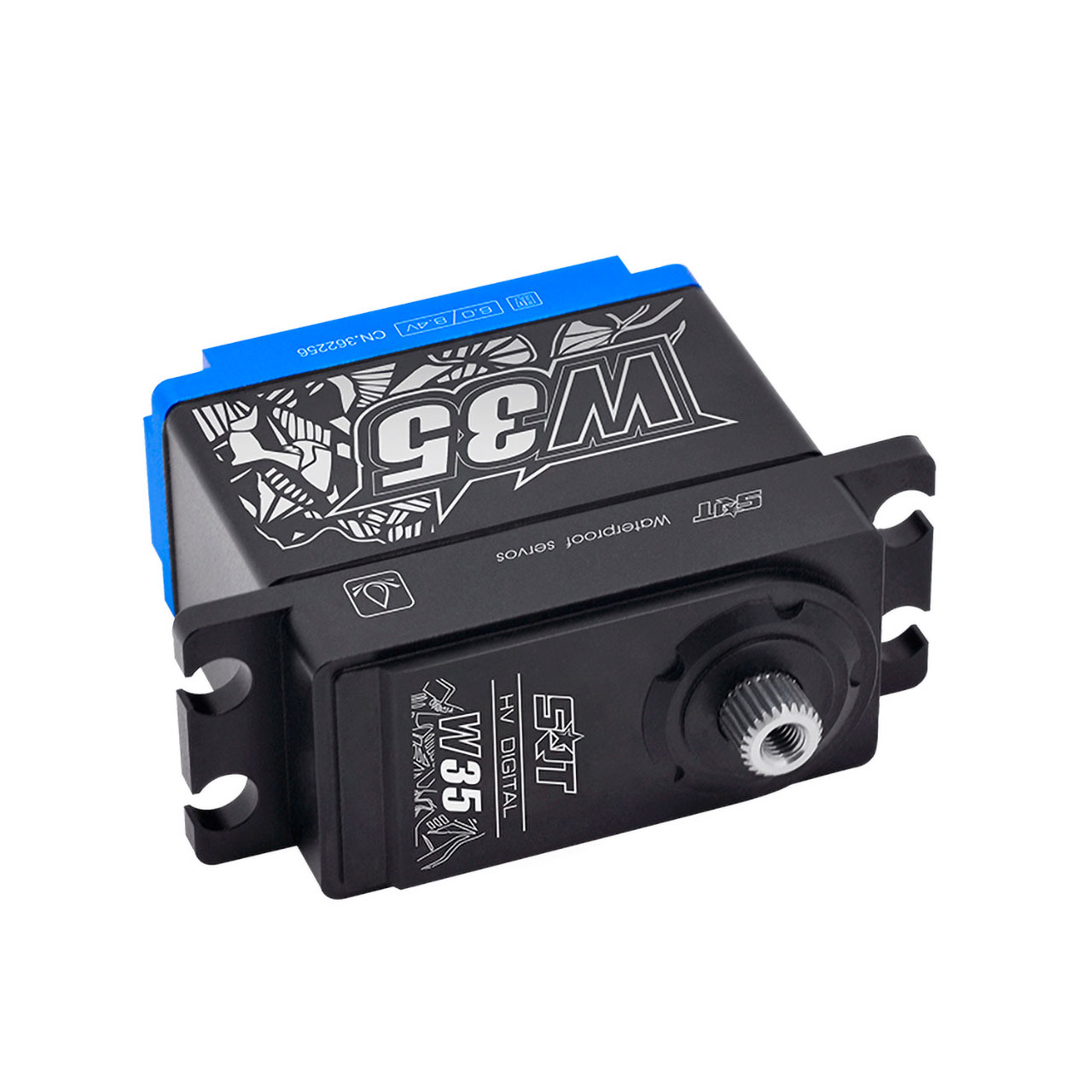

SRT DHW35 Digital Servo – waterproof high-torque RC servo (35 kgcm | 8.4V | 25T)

The SRT DHW35 is a powerful digital servo for 1/10 and 1/8 scale RC on-road and off-road models as well as for electric boats. The aluminium housing ensures high torsional rigidity, while the waterproof design protects against moisture and dirt. With high holding force and precise positioning accuracy, the servo is suitable for tough racing and bash applications where steering precision under load is crucial.

Highlights

• Suitable for 1/10 & 1/8 on-road/off-road and electric boats
• Waterproof – suitable for mud, rain and splashing water
• CNC aluminium housing – robust, resilient, temperature-stable
• Extreme holding force & positioning accuracy – precise steering, stable straight-line running
• Dual NMB main bearings – durable bearings, smooth running
• 25T gearing – compatible with many common 25T servo horns
• Coreless motor – very fast response due to low rotor inertia
• Titanium & steel gears – for high loads in off-road operation

Technical data

• Voltage: 6.0V / 7.4V / 8.4V
• Positioning speed: 0.15 s/60° (6.0V) · 0.12 s/60° (7.4V) · 0.10 s/60° (8.4V)
• Torque: 25.0 kgcm (6.0V) · 30.0 kgcm (7.4V) · 35.0 kgcm (8.4V)
• Motor: Coreless
• Gearbox: Titanium & steel
• Type: Digital
• Control frequency: 330 Hz
• Ball bearings: Yes (dual NMB)
• Dimensions: 40.7 × 20.5 × 38.6 mm
• Weight: 82.5 g
• Gear teeth: 25T

Scope of delivery

• 1× servo
• 1× servo horn
• 1× sticker sheet
