PL18 Ultra remote control 18 channels set test

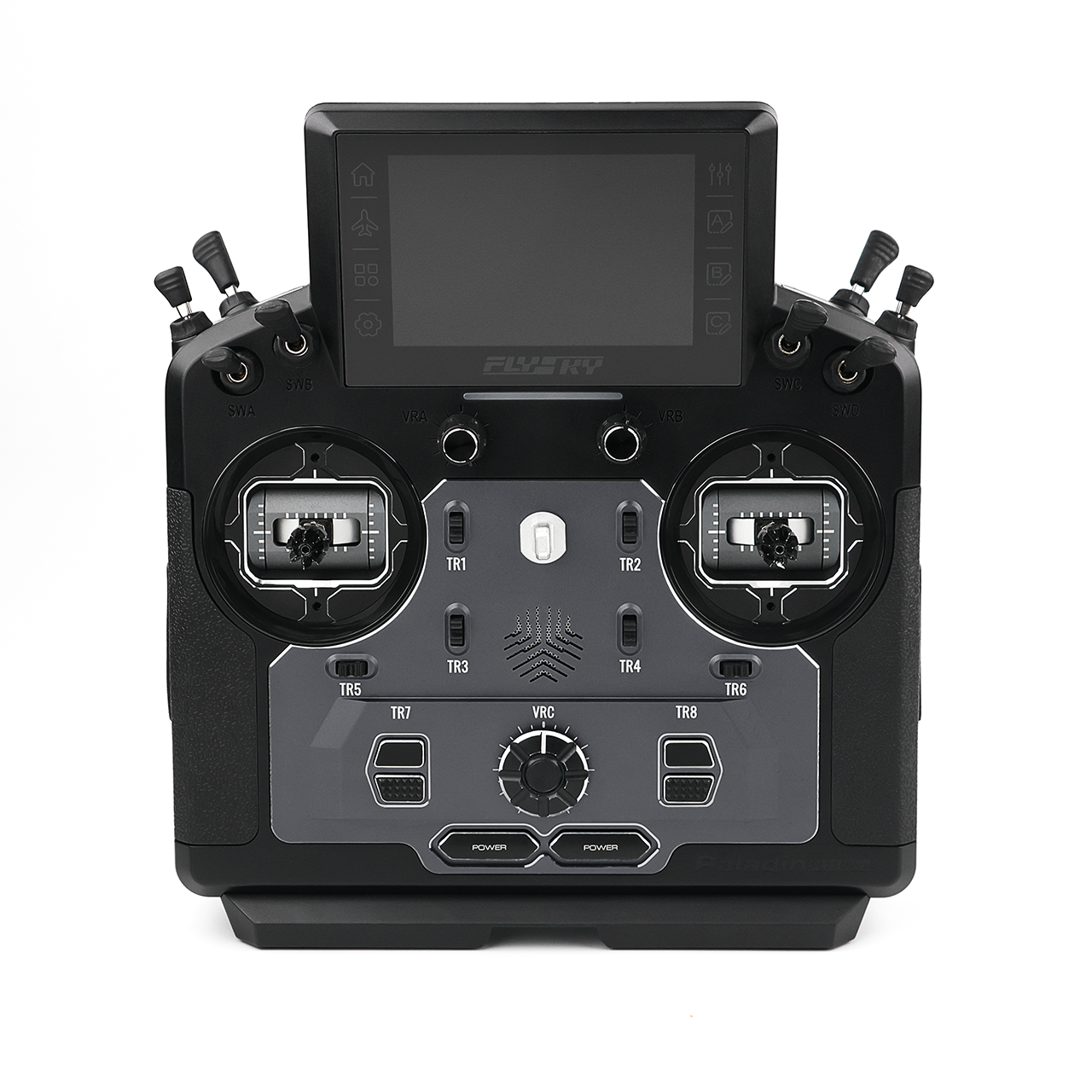

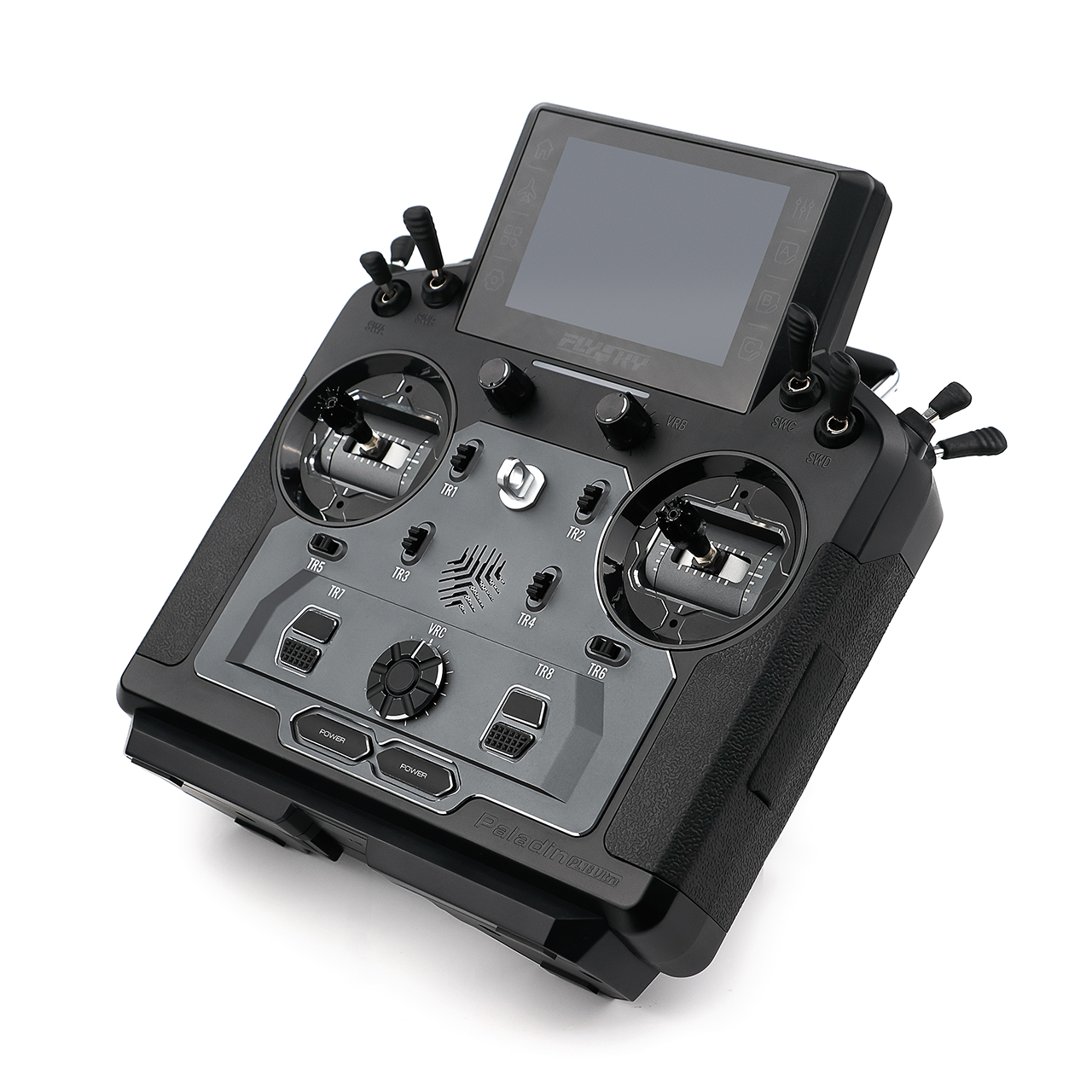

FlySky PL18 Ultra remote control with 18 channels for functional models as a complete set with receiver

The FlySky PL18 Ultra is the uncompromising high-end system for demanding RC modellers. With its modern, high-quality design, outstanding hardware and extremely fast signal processing, the PL18 Ultra sets new standards in terms of precision, customisability and performance.

All channels can be freely assigned to the sticks, switches and knobs by touch on the display. All types of sensor modules are available and are shown on the ultra-bright display. Menus with ready-made setups for model aircraft, helis, copters, vehicles, robots and model boats. The submenu specially designed for model ships contains a logic switch function. This makes it very easy to intelligently control models with two motors and connect them to rudder functions at the same time.

The PL 18 Ultra system can process and transmit various protocols simultaneously. Receivers of type AFHDS3, PPM, CRSF can be connected. I-Bus2 and PWM signals are possible. Several receivers can be combined in one model. This makes the system ideal for replacing existing transmitters without having to make changes to the model.

Operating instructions and transmitter are currently only available in English. The instructions can be downloaded further down on this page.

Some important features

-3.5" IPS touchscreen (320x480px) with extremely high brightness (657LUX)
-Ergonomic design with optimised buttons and tactile feedback
-4096-level resolution through Hall sensor sticks
-18 control channels
-AFHDS3, PPM and CRSF protocol
-Improved UI design
-Open operating system for customised software configuration
-8700mAh battery for over 16 hours operating time
-Wireless charging (12W)
-Various RF coupling modes (Lora, Routine, Classic, Fast, C-Fast)
-USB-C for charging, firmware update & simulator operation

Whether for scale models or in the professional segment: this remote control is impressive across the board.

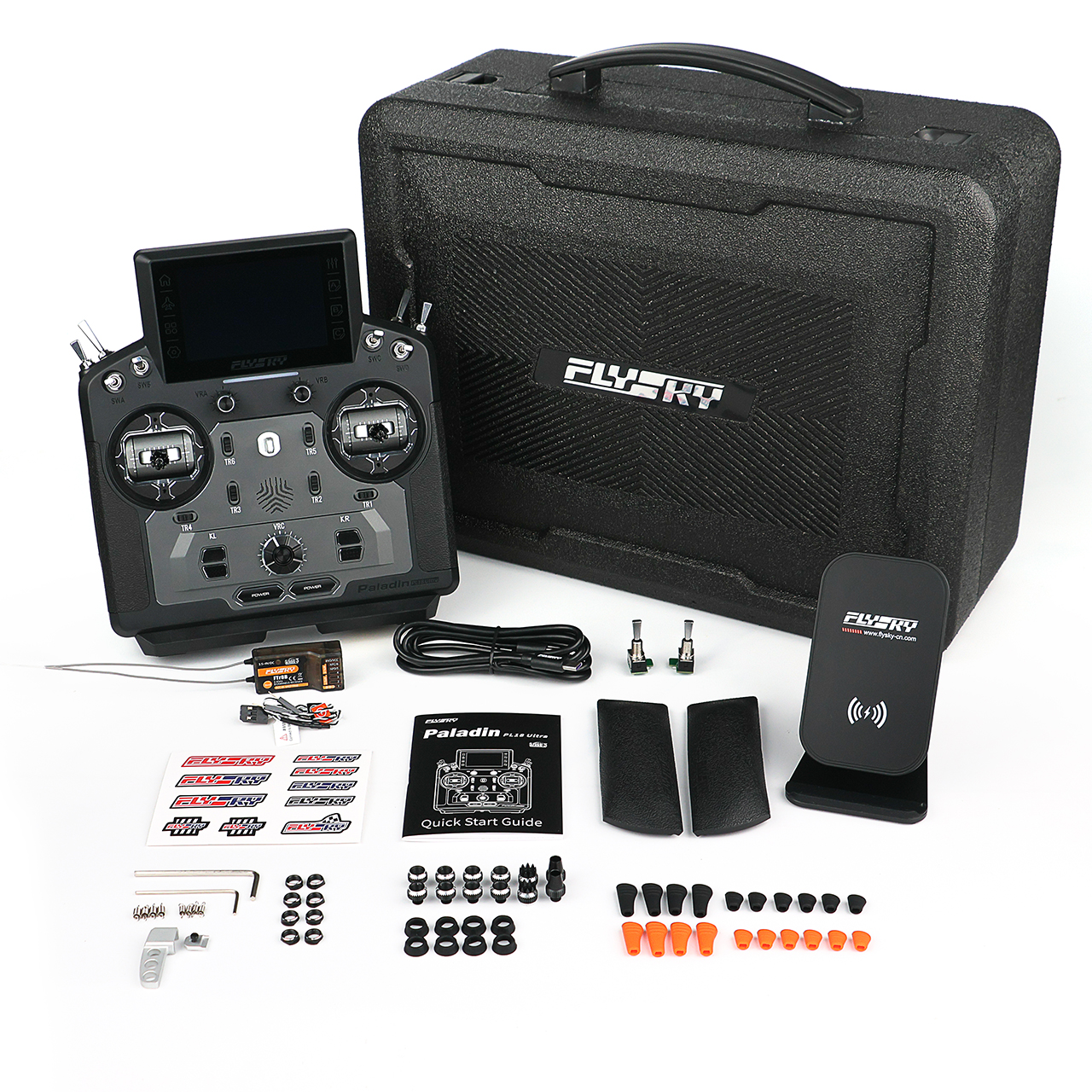

Scope of delivery:

-FlySky PL18 Ultra transmitter
-FTr8B receiver
-USB-C charging cable
-Wireless charger
-Carrying case, accessories and spare parts
-User manual - English

Technical data:

RF frequency range: 2402.15MMHz-2479.85MMHz
Transmission protocol:  AFHDS3 + others
Channels: 18
Channel resolution: 4096
Display: 3.5" touchscreen, 320x480px
Power supply: 1S LiPo (integrated 8700mAh battery)
Data connection: USB-C, TEI, DSC 3.5mm, SD card
Size: 212.5 x 86.7 x 191mm
Weight: 1005g
Firmware update: Yes, online via USB-C
