Transmitter Set i4X 4 Channel

Flysky i4X 2.4 GHz 4-channel remote control system for RC aeroplanes and model boats

The Flysky i4X 2.4 GHz remote control system is a reliable and user-friendly RC remote control for beginners and hobbyists. Equipped with the modern AFHDS2A transmission protocol, the transmitter offers a stable, interference-free radio connection with high operational reliability and good range.

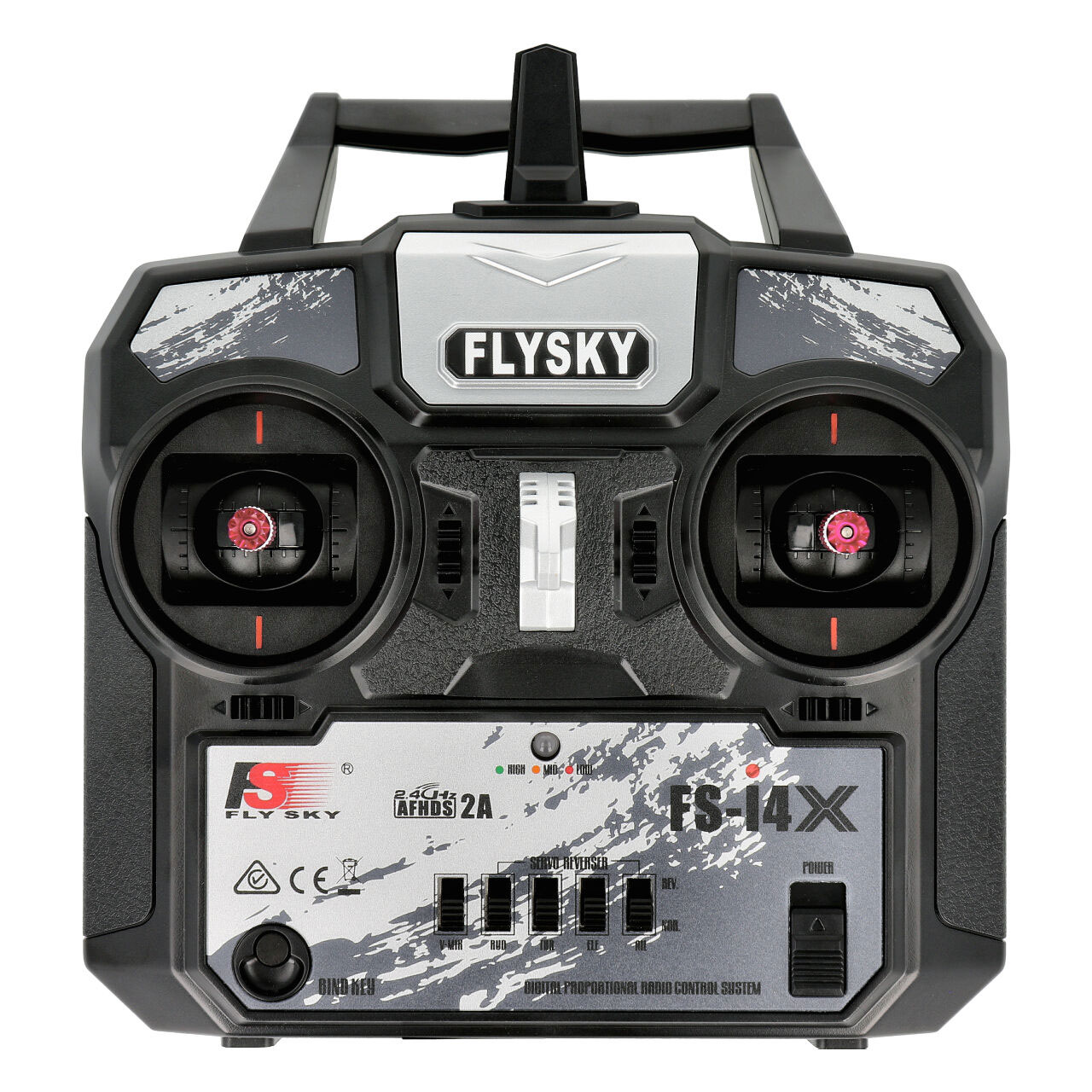

The ergonomically designed 4-channel RC transmitter is ideal for RC aeroplanes, gliders, RC boats and model ships. Features such as channel reversal, mixing functions and the option of DIY expansion to up to 10 channels make the system flexible and future-proof. The transmitter comes in Mode 2 as standard and can be switched to Mode 1.

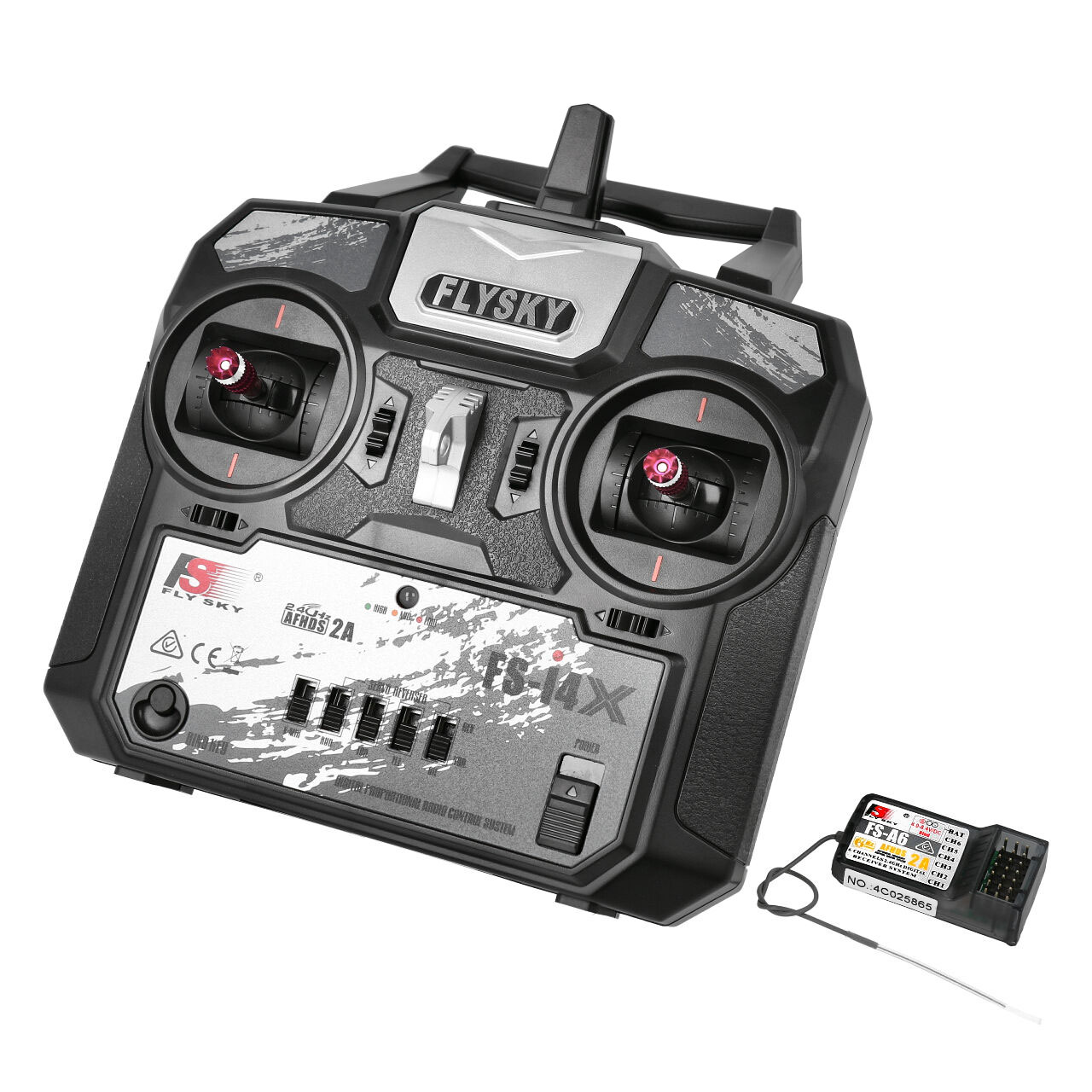

The set includes a Flysky FS-A6 receiver, which is versatile thanks to its compact design and AFHDS2A compatibility. The transmitter is powered by standard AA batteries, which makes it particularly easy to use.

Scope of delivery

Flysky i4X 4-channel 2.4 GHz RC transmitter

Flysky FS-A6 6-channel receiver

Operating instructions

Technical data – transmitter

Radio frequency: 2.4 GHz (2.405–2.475 GHz)

Transmission protocol: AFHDS2A / AFHDS

Number of channels: 4 (expandable to 10)

Resolution: 1024 steps

Transmission power: < 20 dBm

Range: in the air up to approx. 500–1500 m, for RC model boats on water approx. 300–500 m, depending on antenna position, environment and interference

Control modes: Mode 2 (standard), switchable to Mode 1

Power supply: 4 × 1.5 V AA batteries (not included)

Dimensions: approx. 174 × 89 × 190 mm

Weight: approx. 323 g

Operating temperature: 0 °C to +60 °C

Technical data – receiver (FS-A6)

Number of channels: 6

Operating voltage: 4.0–6.5 V

Transmission protocol: AFHDS2A
