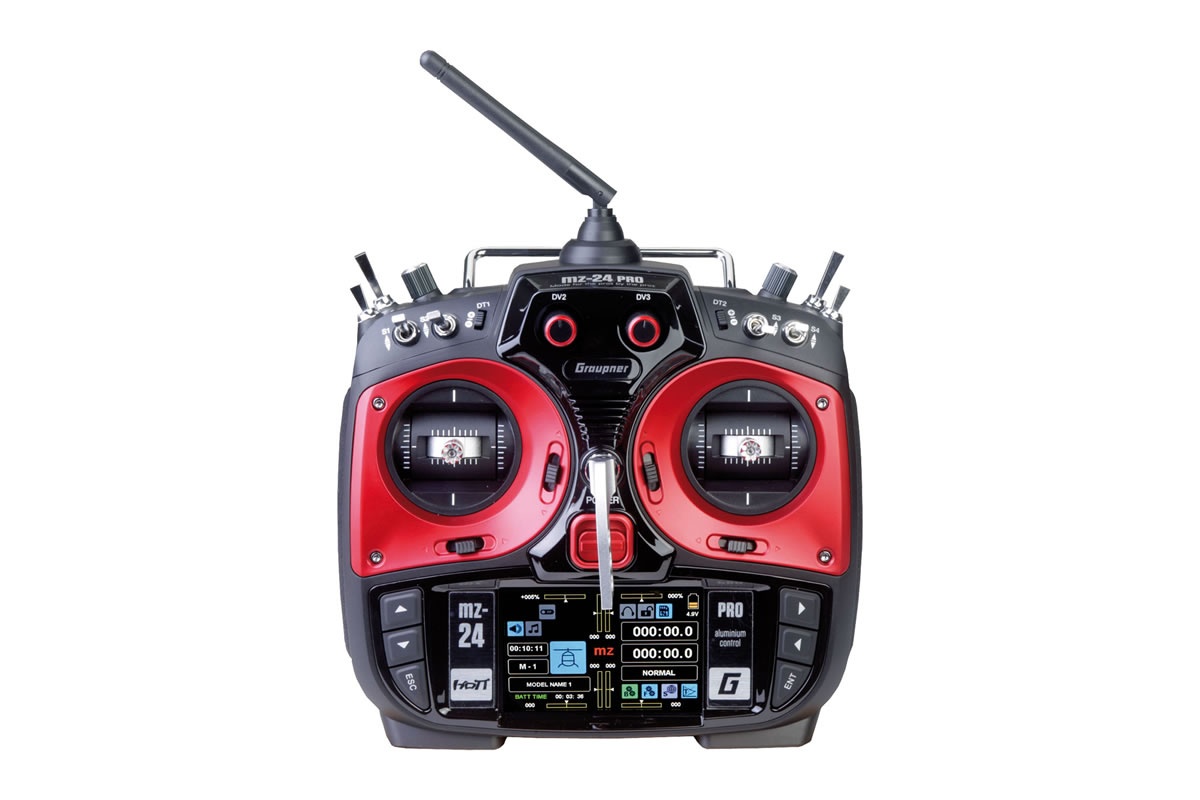

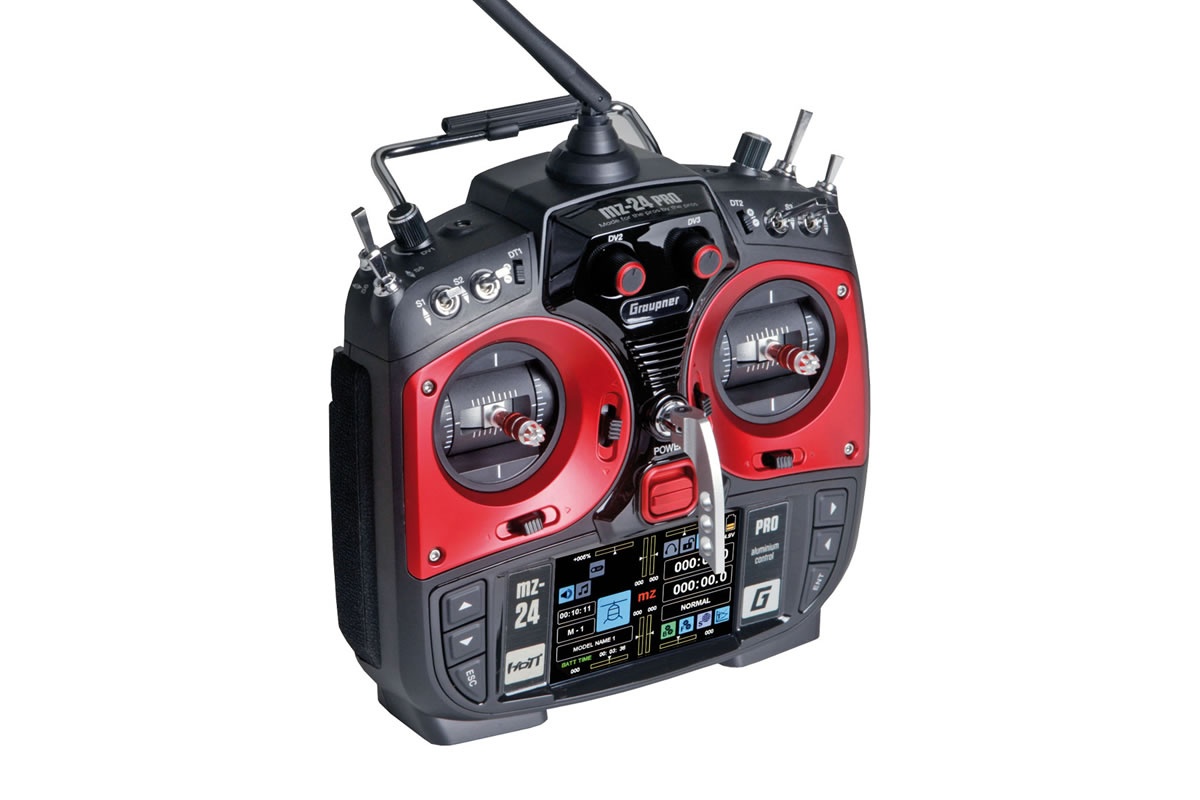

Graupner mz-24 PRO HoTT 2.4 GHz Radio Control – 12-channel transmitter
The Graupner mz-24 PRO HoTT radio control is a high-performance 12-channel transmitter for discerning model-makers. Featuring modern HoTT 2.4 GHz technology, FHSS modulation and convenient operation via a touch-sensitive colour display, the mz-24 PRO provides a reliable foundation for precise control in RC model building
The transmitter has 12 control functions, 4 of which are trimmable, offering a wide range of possibilities for models with multiple functions. The control sticks are adjustable in length, and the return force, ratchet and braking effect can also be individually adjusted. This allows the Graupner mz-24 PRO to be easily tailored to personal control preferences and different model types
. The clear display, digital trims with visual and audible feedback, and numerous directly accessible switches, rotary encoders and controls ensure ease of use. Log data and model memories can be managed via the integrated micro-SD card slot. Firmware updates and connection to a PC are carried out via the mini-USB port
The Graupner mz-24 PRO HoTT 2.4 GHz radio control is ideal for model builders looking for a versatile RC transmitter with a good range of features, flexible adjustment options and user-friendly menu navigation. It is suitable for many areas of model-making and impresses with its combination of feature set, ease of use and proven Graupner HoTT technology
Features
HoTT 2.4 GHz radio control technology with FHSS modulation
12 control functions, 4 of which are trimmable
Touch-sensitive colour display
Digital trim with visual and audible feedback

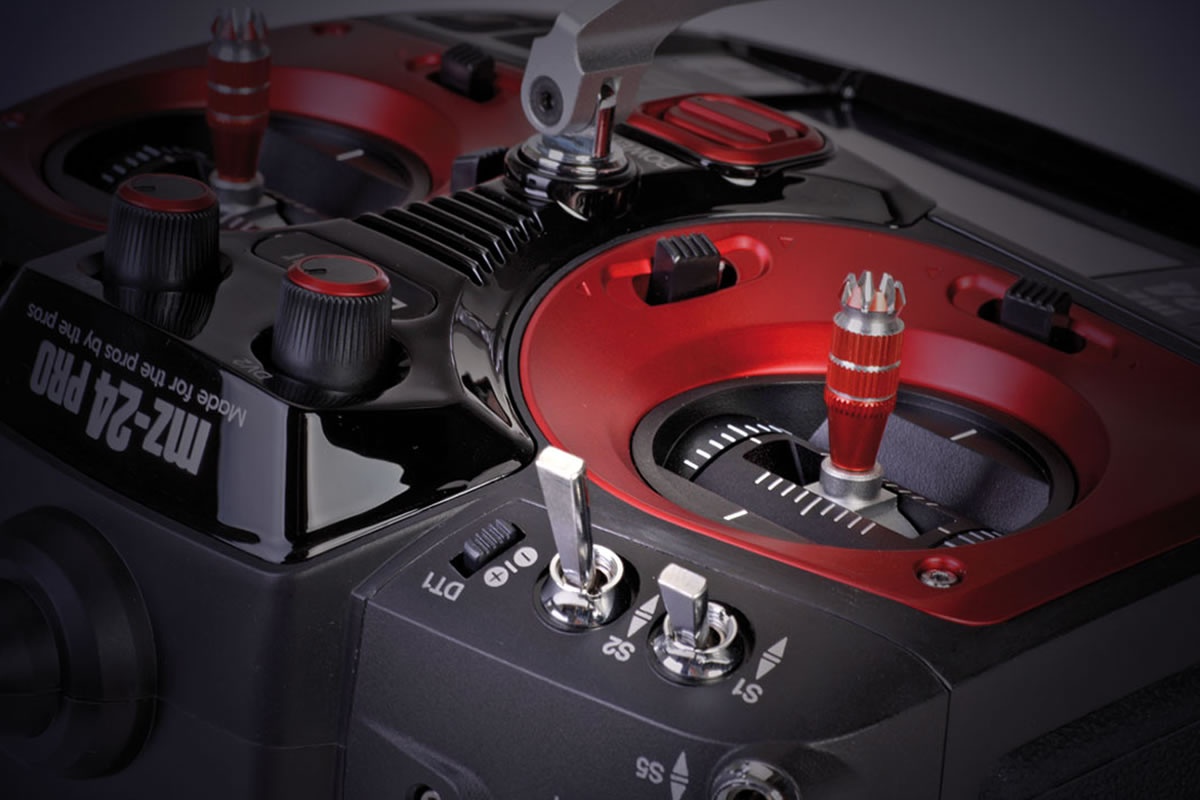

Adjustable control sticks
Adjustable stick length
Adjustable return force, ratchet and braking effect
microSD card slot for log data and model memory
mini-USB port for PC connection and firmware updates
DSC socket for flight simulators or instructor-student mode
Headphone socket for signals and voice prompts
Rotatable and foldable antenna
Key lock
Telemetry displays via the screen
Contents
Graupner mz-24 PRO HoTT transmitter
Transmitter battery
Plug-in charger
USB adapter/interface
USB cable
Adapter cable
Transmitter strap
Stylus for operating the display
microSD card
microSD card adapter
Carry case
Transmitter manual, Part 1
Technical specifications
Frequency band 2.4 – 2.4835 GHz
Modulation FHSS
Transmit power 100 mW EIRP
Control functions 12 functions, 4 of which are adjustable
Operating voltage 3.4 – 6 V
Current consumption approx. 540 mA
Temperature range -10 to +55 °C
Antenna rotatable and foldable
Dimensions approx. 194 × 287 × 112 mm
Weight approx. 840 g including transmitter battery
