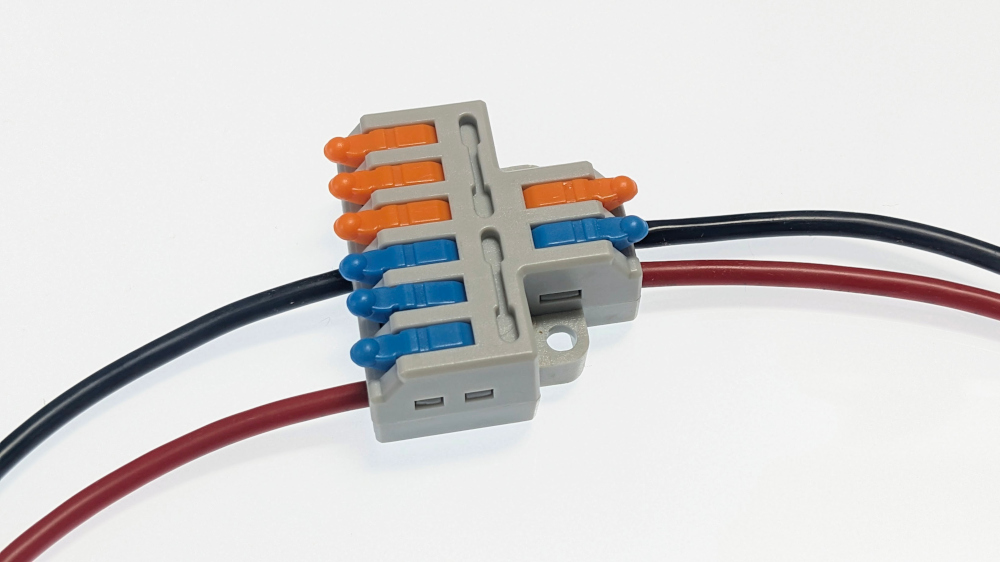

The distribution terminal for wiring in the model. Voltage can be easily distributed across multiple modules.
To connect and disconnect, simply press the orange/blue levers down or up. No tools are required.
Suitable for rigid and flexible cables. The cable must be stripped approx. 9–11 mm at the end.

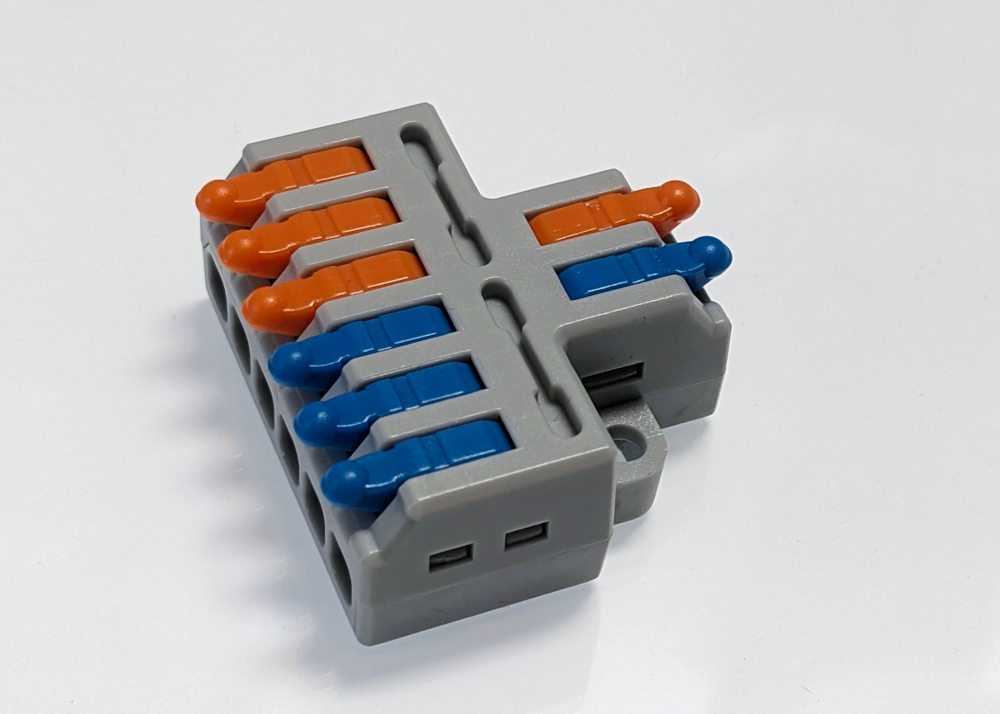

The distribution terminal has 2 x 4 poles: all orange terminals are connected to each other and all blue terminals are connected to each other. Three consumers can be connected to one power source.
Technical data:
Voltage: max. 250 V Current carrying capacity: max. 32 A Cable cross-section: 0.08 - 2.5 mm² / 13 - 28 AWG Dimensions: 34 x 32 x 15 mm Weight: 10 g
