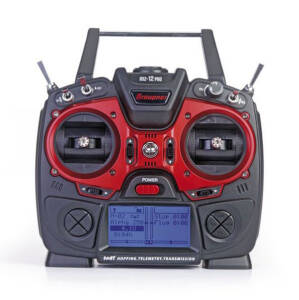

Graupner mz-12PRO HoTT – 12-channel 2.4 GHz remote control | Precise control & professional telemetry
The Graupner mz-12PRO HoTT is a versatile and powerful 12-channel remote control designed for maximum precision and safety in all areas of RC model building. With advanced HoTT radio technology, extensive programming functions and an intuitive user interface, it is the ideal choice for model aeroplanes, helicopters, multicopters, cars and boats.
The combination of ease of use, robust construction and professional setting options makes the mz-12PRO attractive for both beginners and experienced model pilots.
The advantages of the Graupner mz-12PRO HoTT at a glance
Highly flexible 12-channel control
With a total of 12 proportional channels, the mz-12PRO offers sufficient reserves for demanding models, special functions and telemetry sensors. Whether complex flap mixes, multicopter configurations or additional switching functions are required, this transmitter is designed for the job.
Integrated HoTT telemetry
The mz-12PRO supports the complete Graupner HoTT telemetry system. Relevant data such as receiver voltage, temperature, signal quality and current values are transmitted in real time. The transmitter can emit acoustic warnings and status messages, providing an additional level of safety.
Intuitive LCD display with clear menu navigation
The clear display shows model information, trim positions, flight phases, timers, battery levels and telemetry data. Thanks to the easy-to-understand menu structure and clear button layout, the remote control can be quickly configured even without prior knowledge.
Important functions such as telemetry display, servo monitor or model menus can be accessed via direct selection buttons.
Individually adjustable control sticks
The mechanical properties of the sticks can be optimally adjusted to the pilot. Stick length, centre detent, spring strength and throttle ratchet can be precisely adjusted. As a result, the mz-12PRO offers a sensitive, precise control feel that is suitable for both leisurely model flying and fast aerobatic manoeuvres or FPV racing.
Supports all common model types
The mz-12PRO includes a wide range of model-specific parameters. It can be individually programmed for aeroplanes, helicopters, multicopters, RC cars and boats.
Several preconfigured models are already stored for multicopters, so beginners can get started quickly. Helicopter pilots benefit from pitch/throttle curves, swashplate mixers and gyro settings. Fixed-wing pilots can use V-tails, dual aileron configurations and flight phases.
Teacher/student function and simulator compatibility
The transmitter can be used in flight schools or simulators (on a PC) via the DSC connection or USB joystick mode. This makes it ideal for training, familiarisation and flight safety.
Future-proof thanks to USB firmware updates
The mz-12PRO can be easily updated via the PC COM port. Firmware updates ensure that the remote control is always equipped with the latest functions, improvements and compatibility enhancements.
Safety and energy management
During operation, the transmitter continuously monitors the battery voltage and displays warnings in good time. An integrated usage timer logs the active operating time. The LiPo transmitter battery is conveniently charged via the USB port.
The protected battery compartment and robust plug connections provide additional safety.
Areas of application for the Graupner mz-12PRO HoTT
Aircraft
• V-tail mixer
• Dual aileron
• Expo and dual rate settings
• Servo monitor for end point control
• Flight phase change
Helicopters
• Pitch and throttle curves
• Swashplate mixes
• Gyro and governor support
Multicopters
• Several preconfigured multicopter models
• Precise pitch/roll/yaw/throttle assignment
• Suitable for FPV and racing drones
RC cars
• Steering and proportional throttle/brake channel
• Forward/reverse operation
RC boats
• Ideal for electric boats and special functions

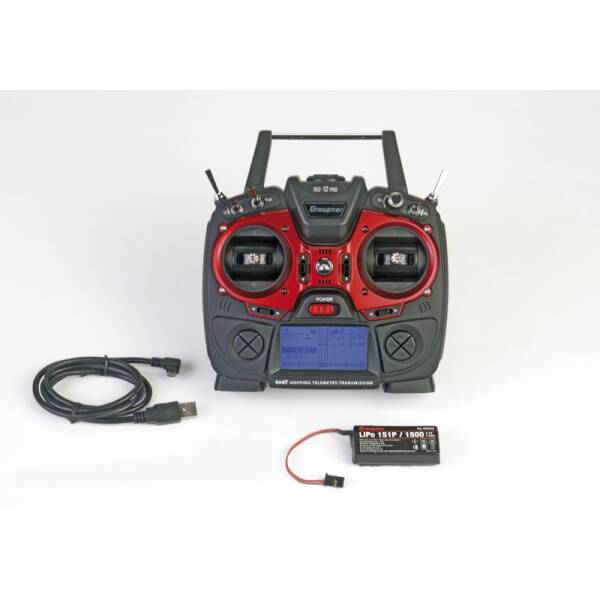

Scope of delivery
• Graupner mz-12PRO HoTT transmitter
• LiPo transmitter battery
• Transmitter strap
• Operating instructions
• Optional: compatible HoTT receiver
Technical data
• Frequency range: 2.400 – 2.4835 GHz
• Modulation: FHSS (HoTT)
• Transmission power: 100 mW EIRP
• Channels: 12 proportional
• Operating temperature: –10 °C to +55 °C
• Antenna: integrated
• Operating voltage: 3.4 – 4.35 V
• Power consumption: approx. 180 mA
• Dimensions: approx. 190 × 185 × 90 mm
• Weight: approx. 700 g (including battery)
