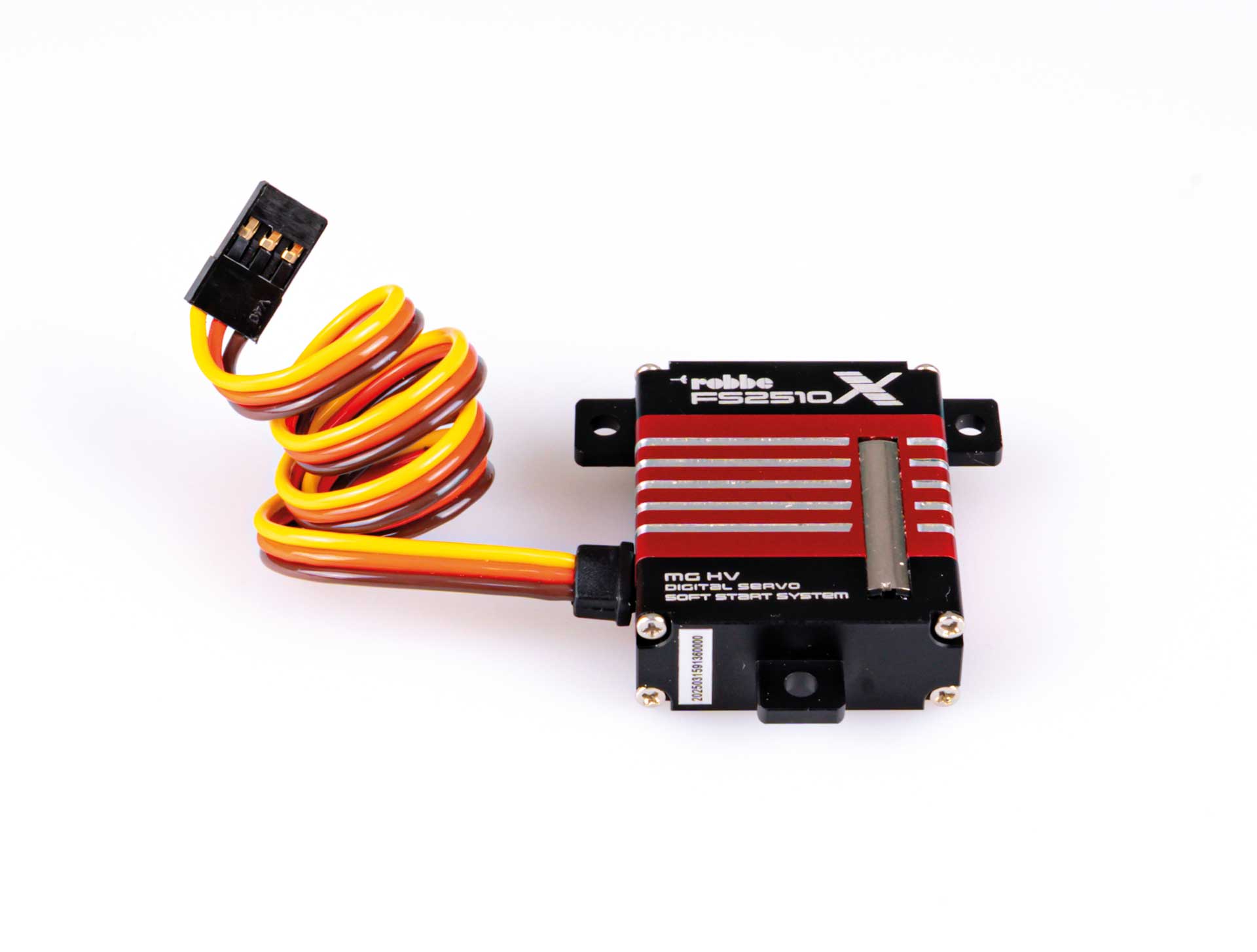

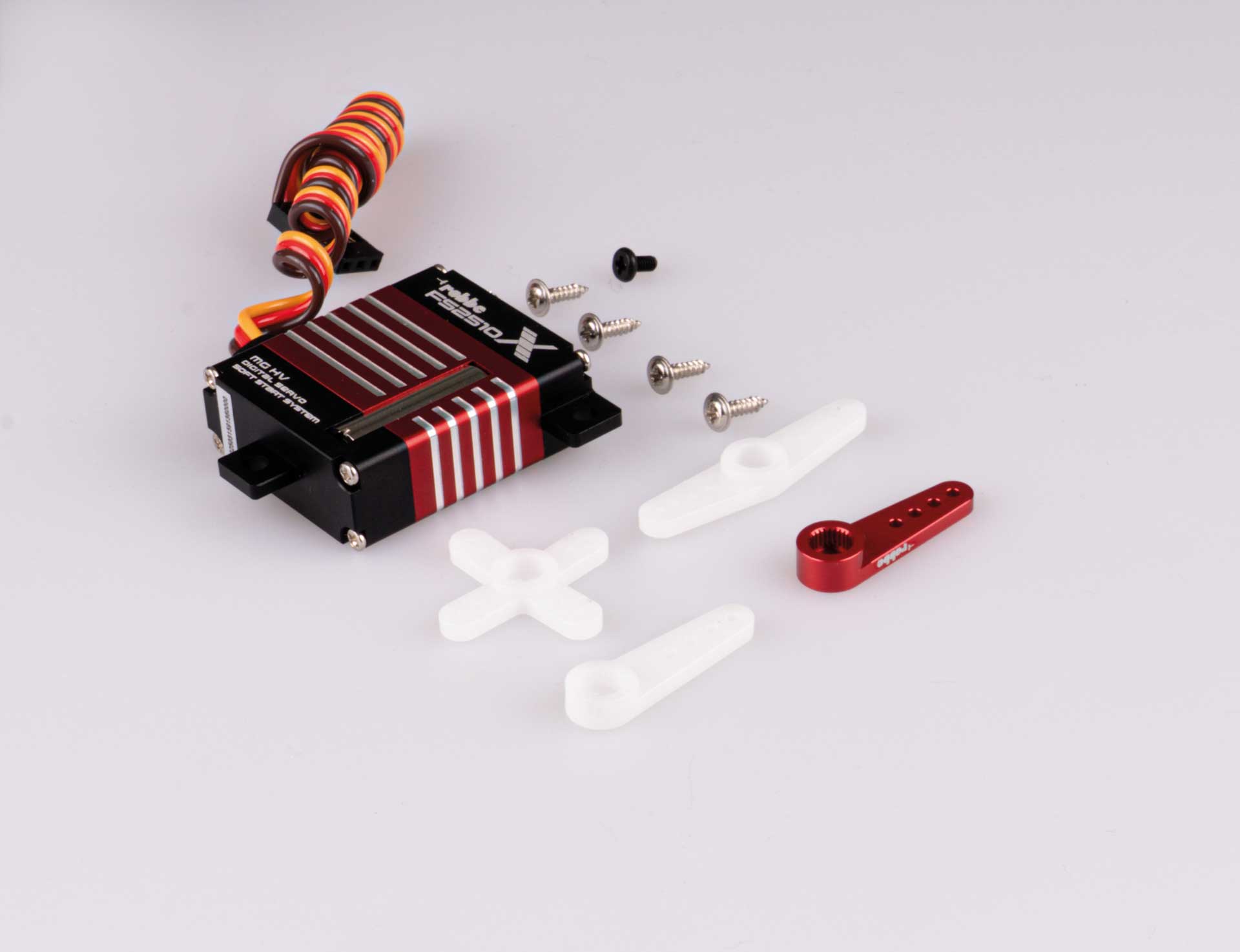

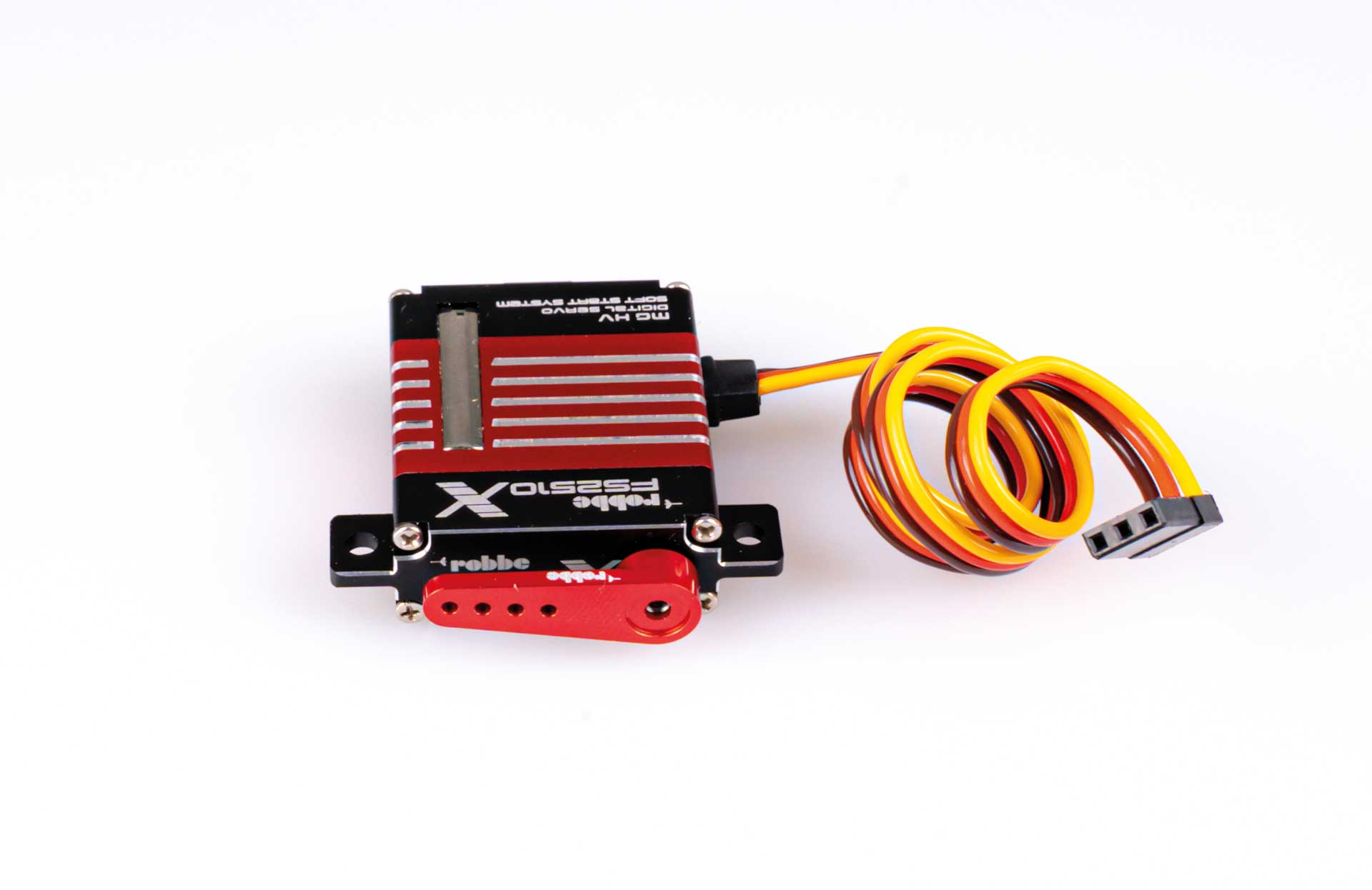

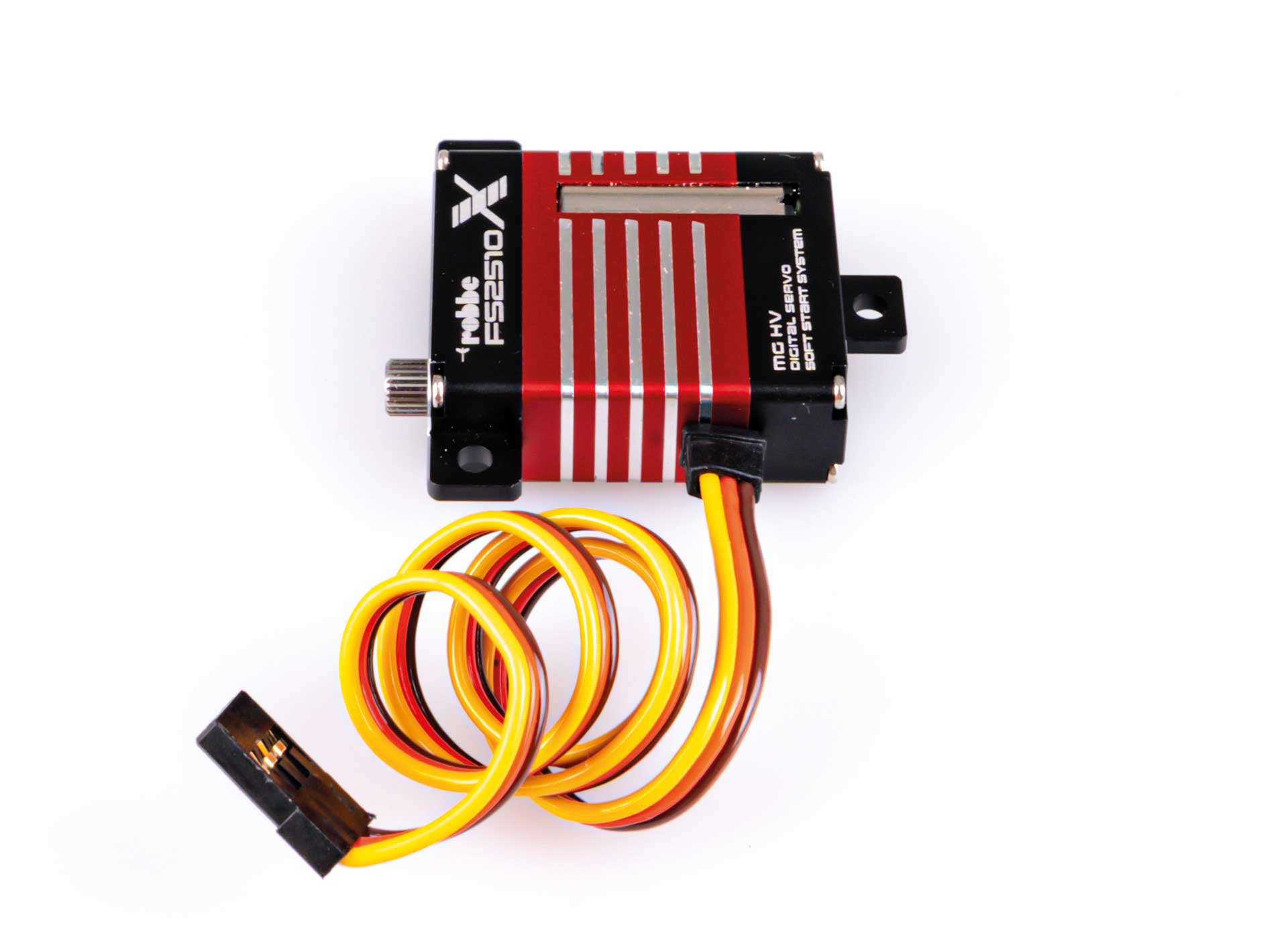

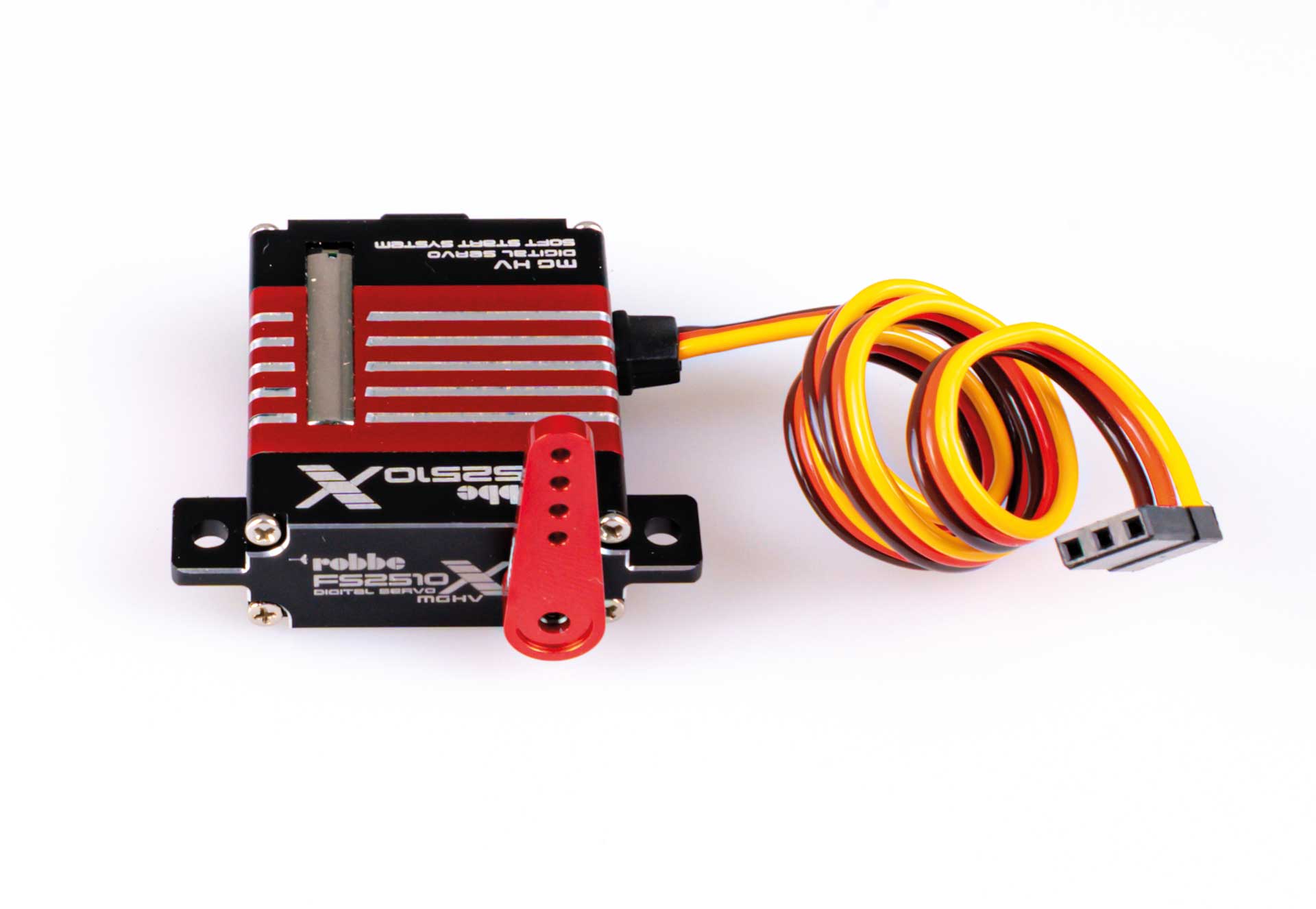

FS 2510X HV MG Digital Servo High Torque Wing Servo

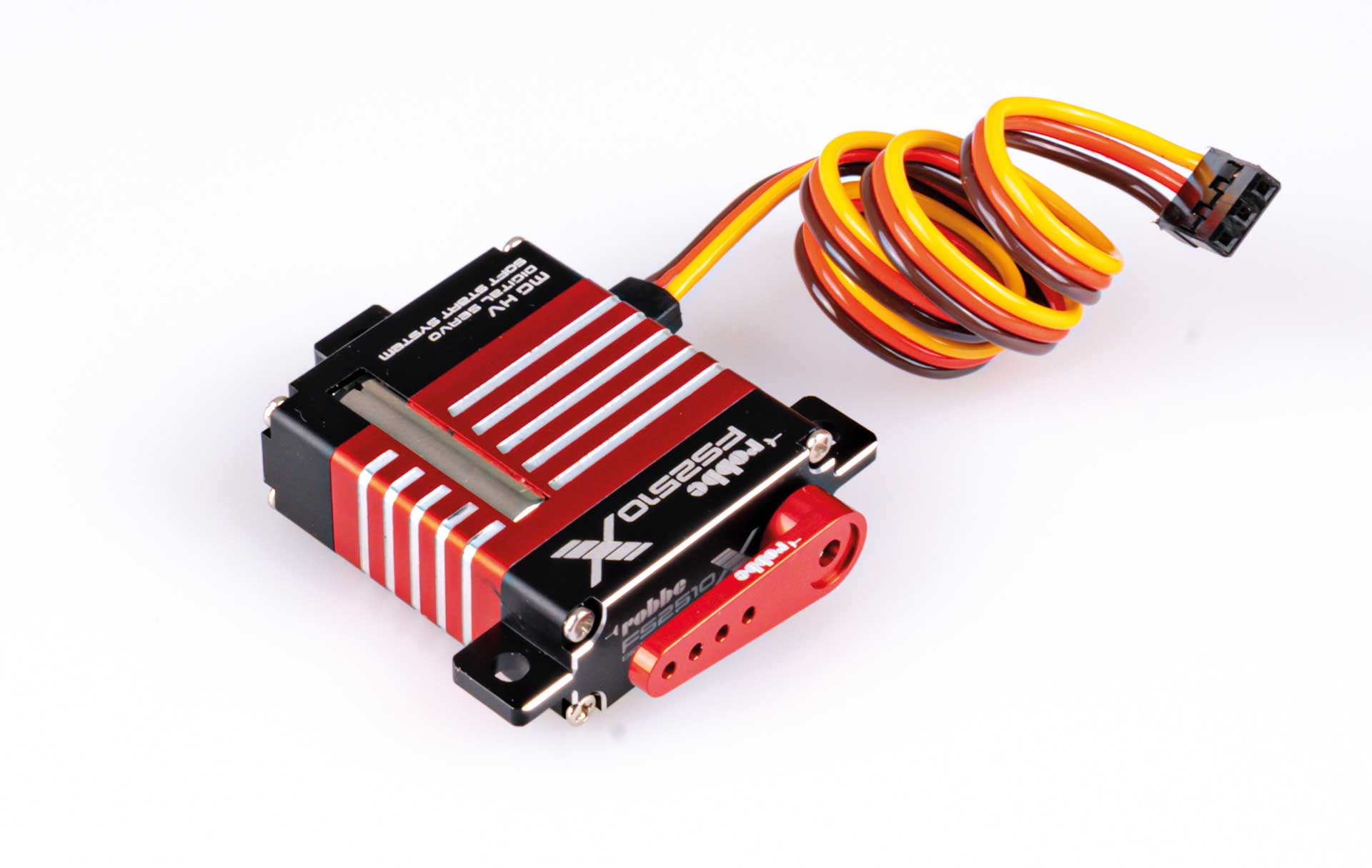

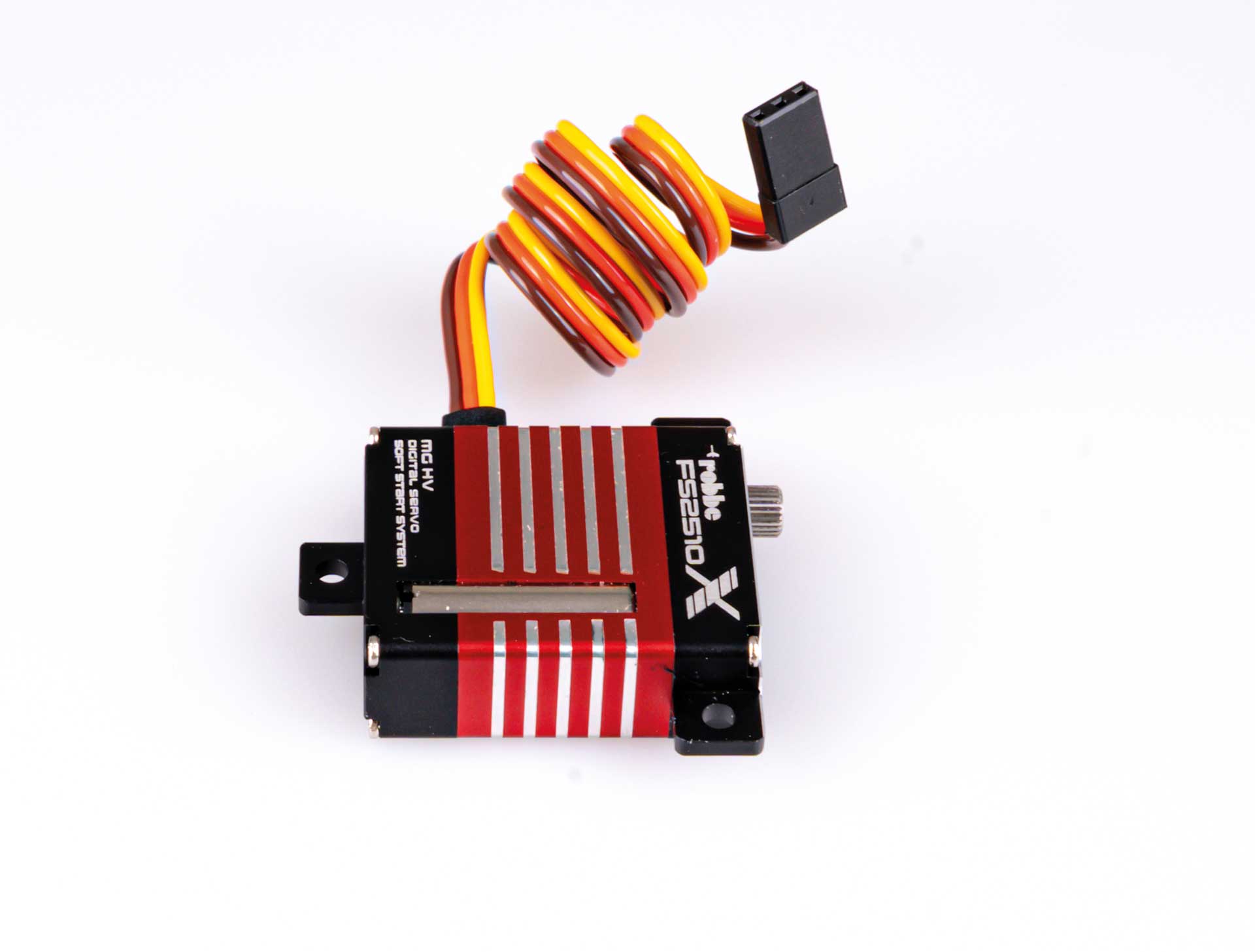

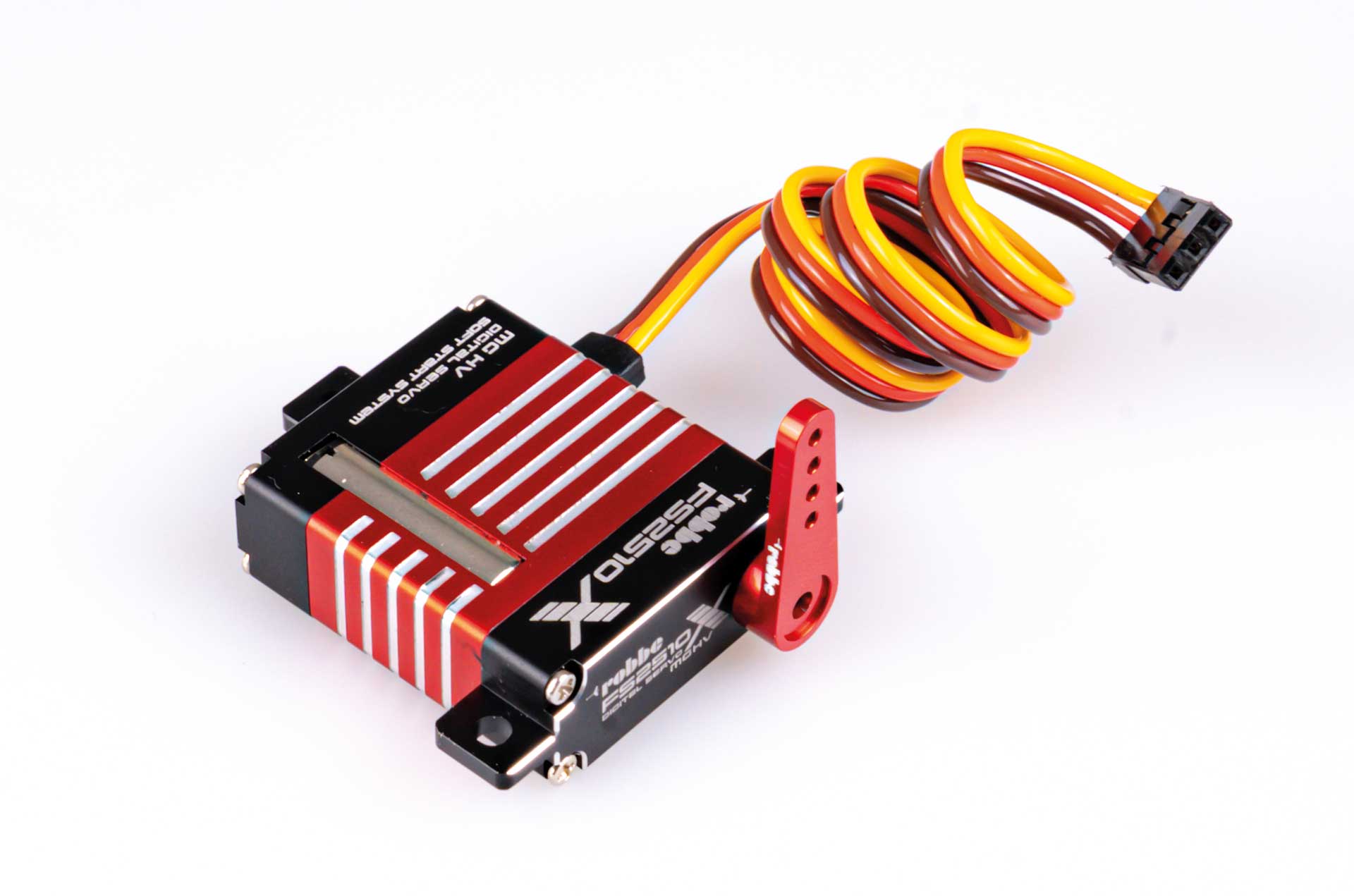

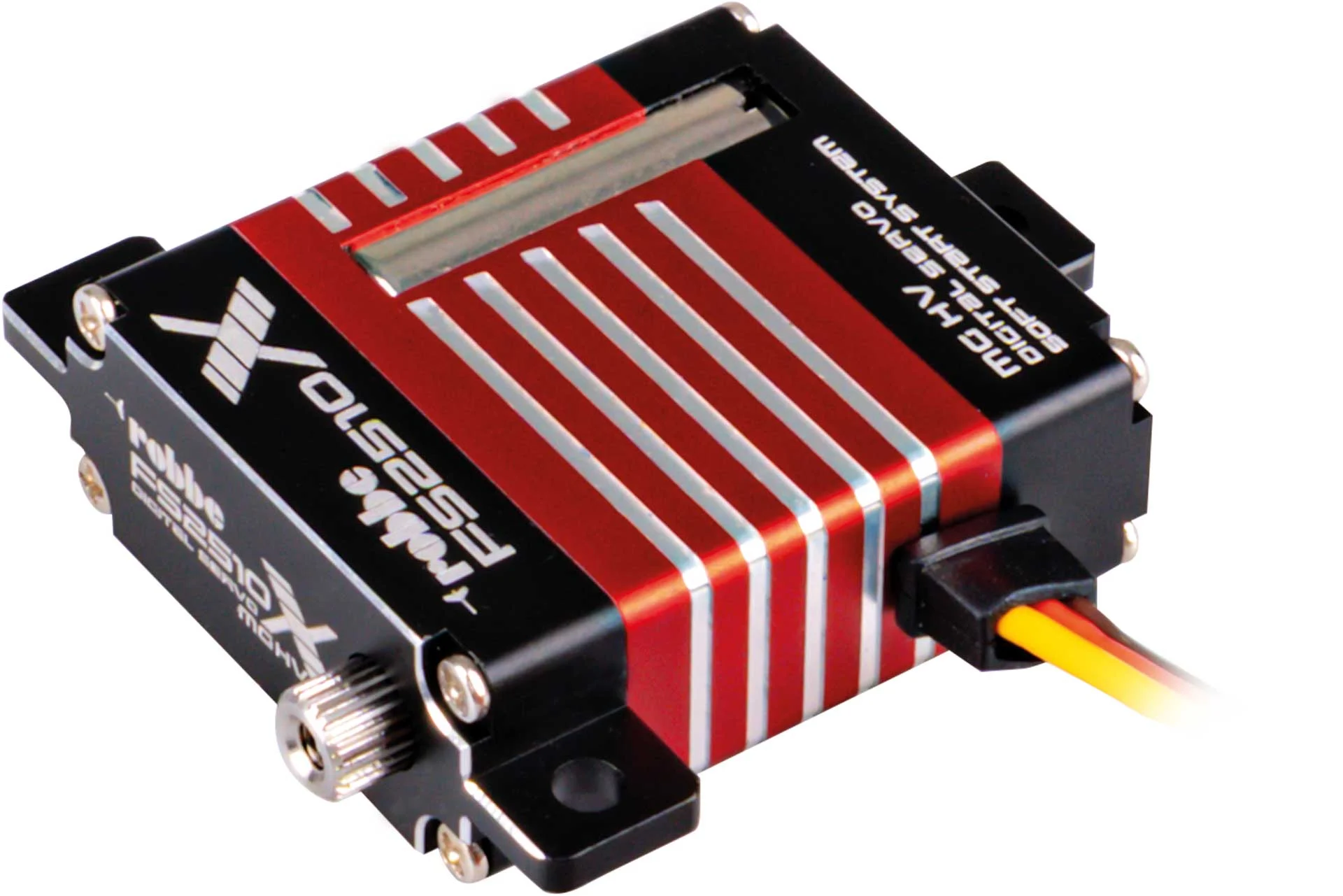

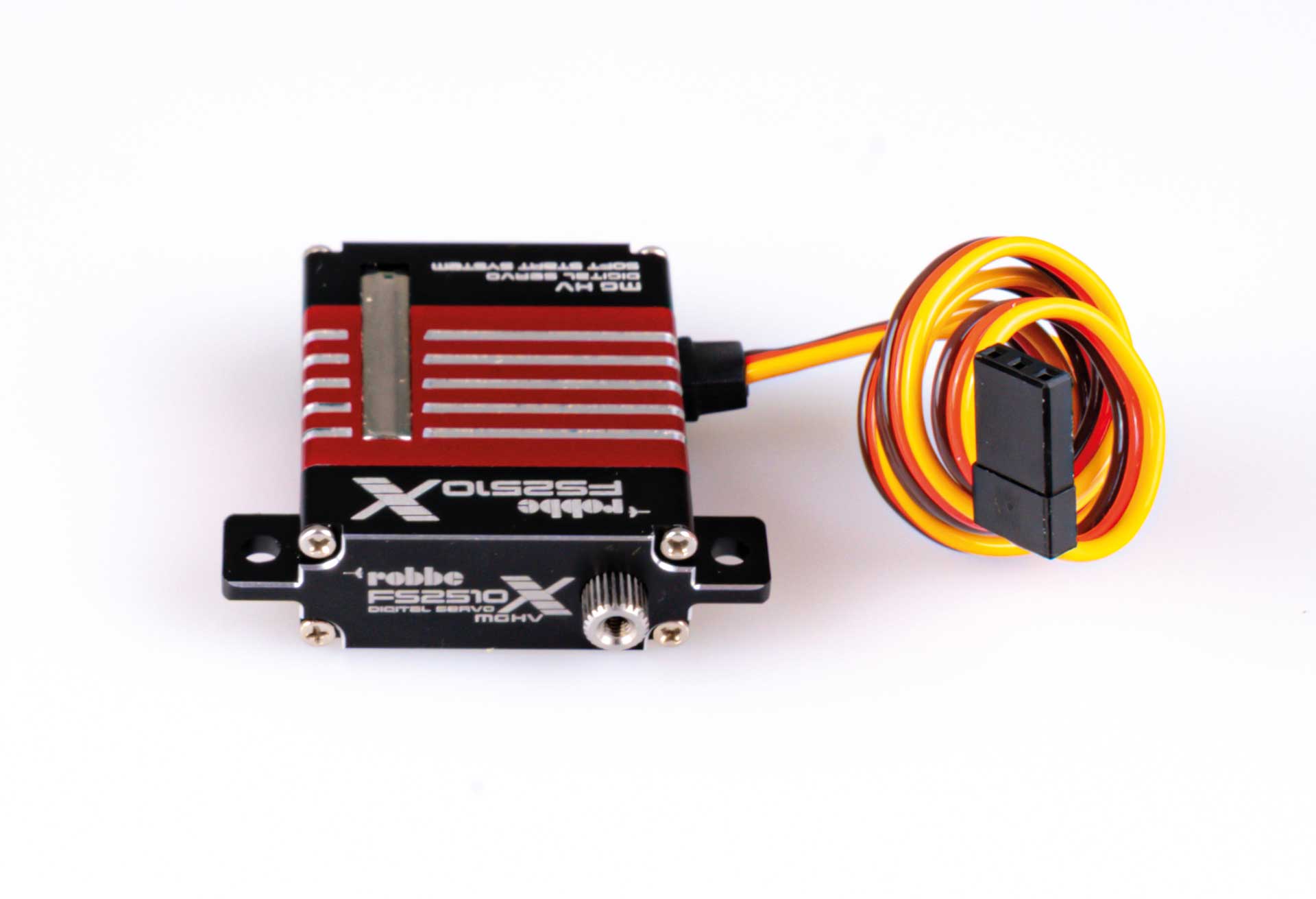

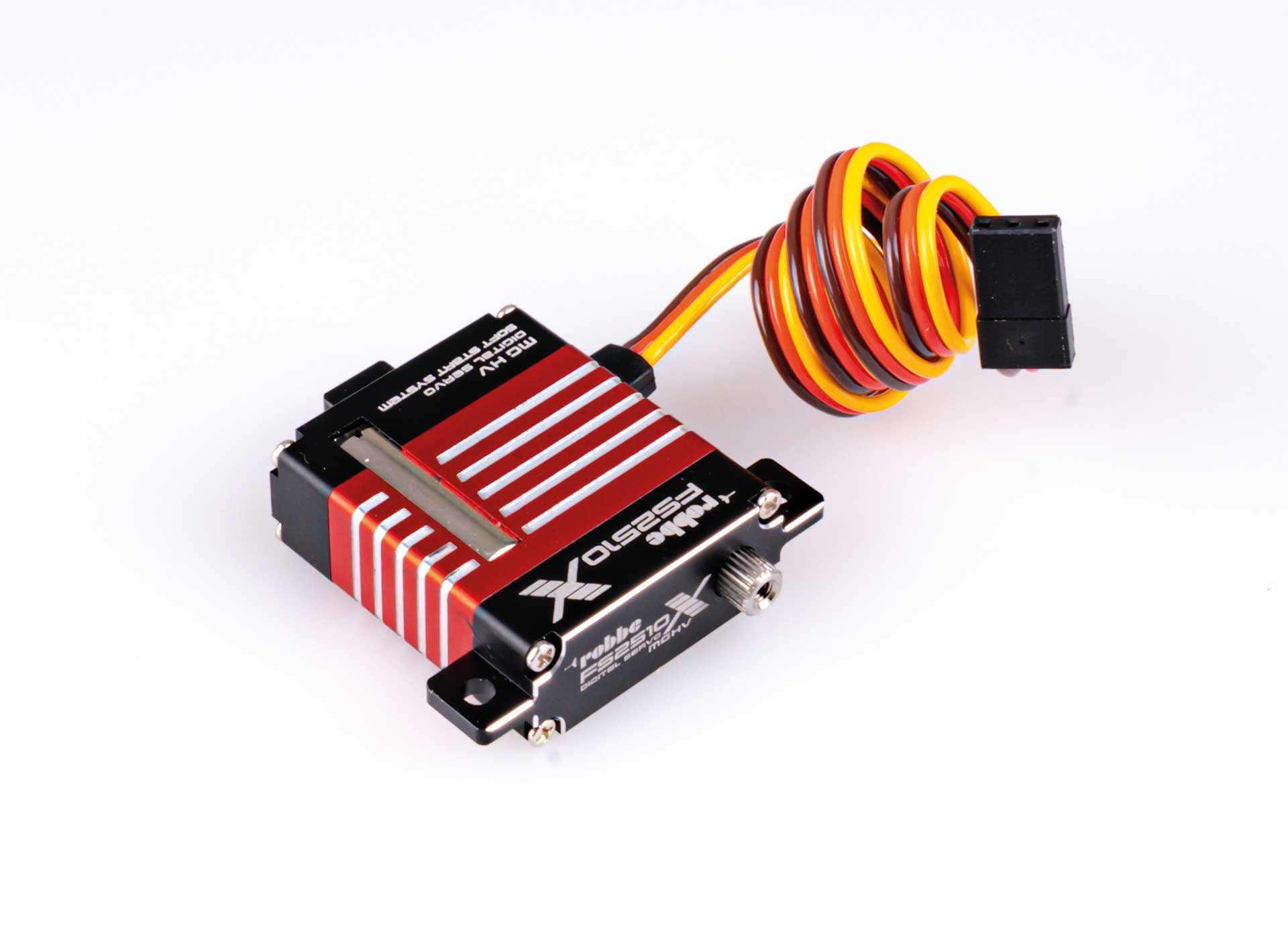

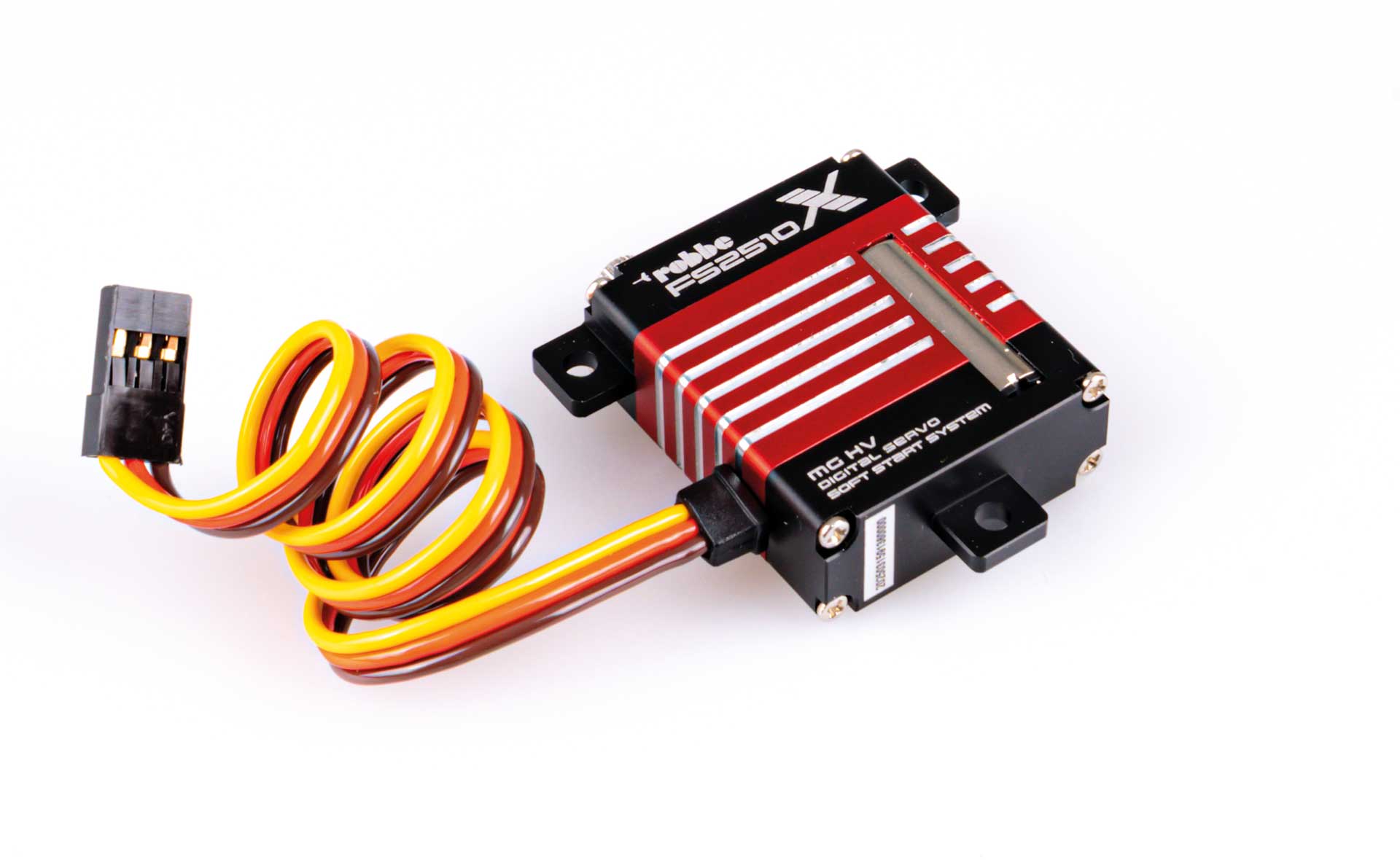

The Robbe FS 2510X is an extremely powerful, fast and robust surface servo. It comes in a compact, CNC-machined aluminium housing with cooling fins for better heat dissipation. The servo has a stable, backlash-free metal gearbox and ball bearings on the output shaft. With an impressive force of 21 kg/cm at 8.4 volts and a short response time, it is particularly well suited as an aileron or flap servo in wings with low profile depths where maximum force is still required.

The new Robbe X-series servos are precision-manufactured high-voltage digital servos in various sizes, suitable for different applications in RC model making. They feature CNC-machined aluminium housings with cooling fins for better heat dissipation and robustness, metal or steel gears for low backlash and high positioning accuracy, high-quality ball bearings, bell-type or brushless motors and a high degree of protection against external influences (IP56). In addition, they are equipped with a soft start function that moves the servo slowly and gently to the neutral position when switched on. These features ensure a long, reliable service life for the servos and thus also for the safety of your models.

Technical data

Ball bearings (BB):     ••
Gear type:     Steel
Weight (g):     35
Length (mm):    30
Width (mm):     12
Height (mm):     35,5
Servo type:     Digital HV
Gear teeth:     25Z/4,93 mm
Operating voltage (V) HV:     4.8 - 8.4
Actuating force kg/cm (4.8V) HV:     13
Actuating time sec./60° (4.8V) HV:     0.14
Actuating force kg/cm (6V) HV:     16
Actuating time sec./60° (6V) HV:     0.13
Actuating force kg/cm (7.4V) HV:     17
Actuating time sec./60° (7.4V) HV:     0.12
Actuating force kg/cm (8.4V) HV:     21
Actuating time sec./60° (8.4V) HV:     0.11
